ART.401 Series
ART.401 Series

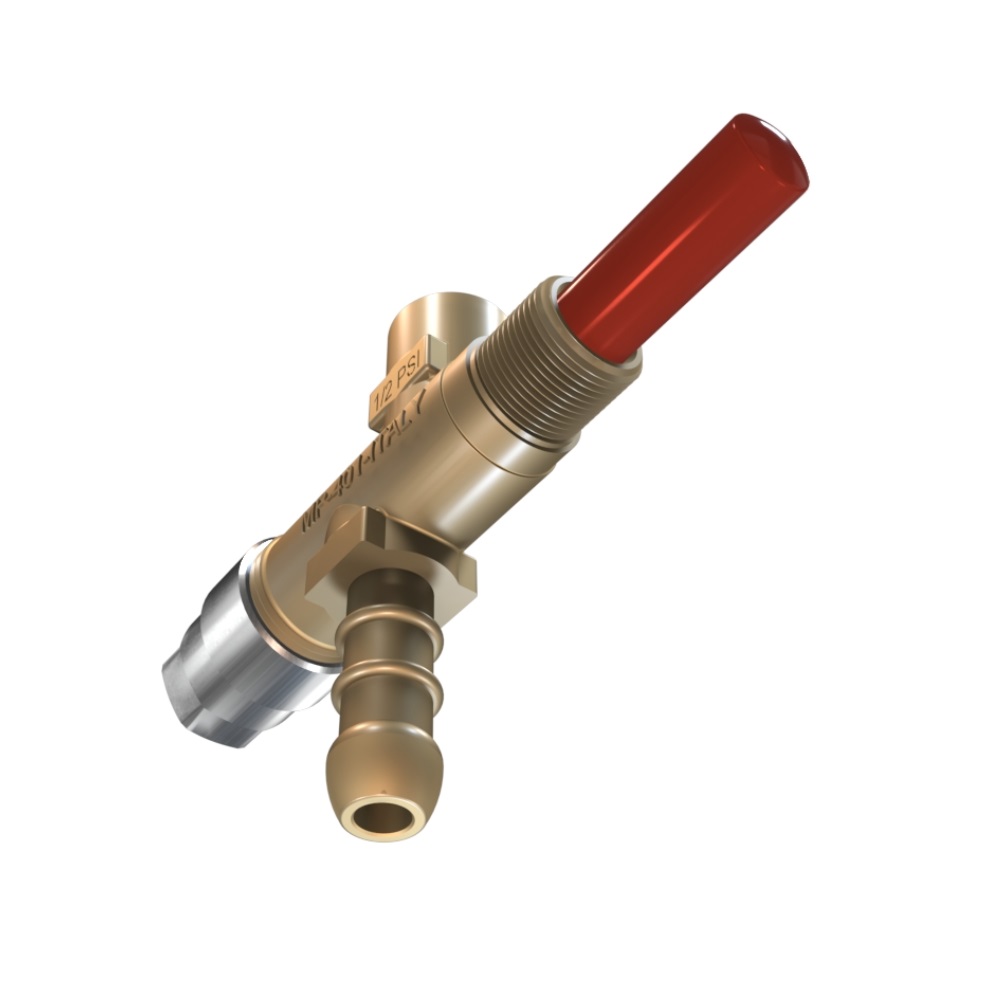

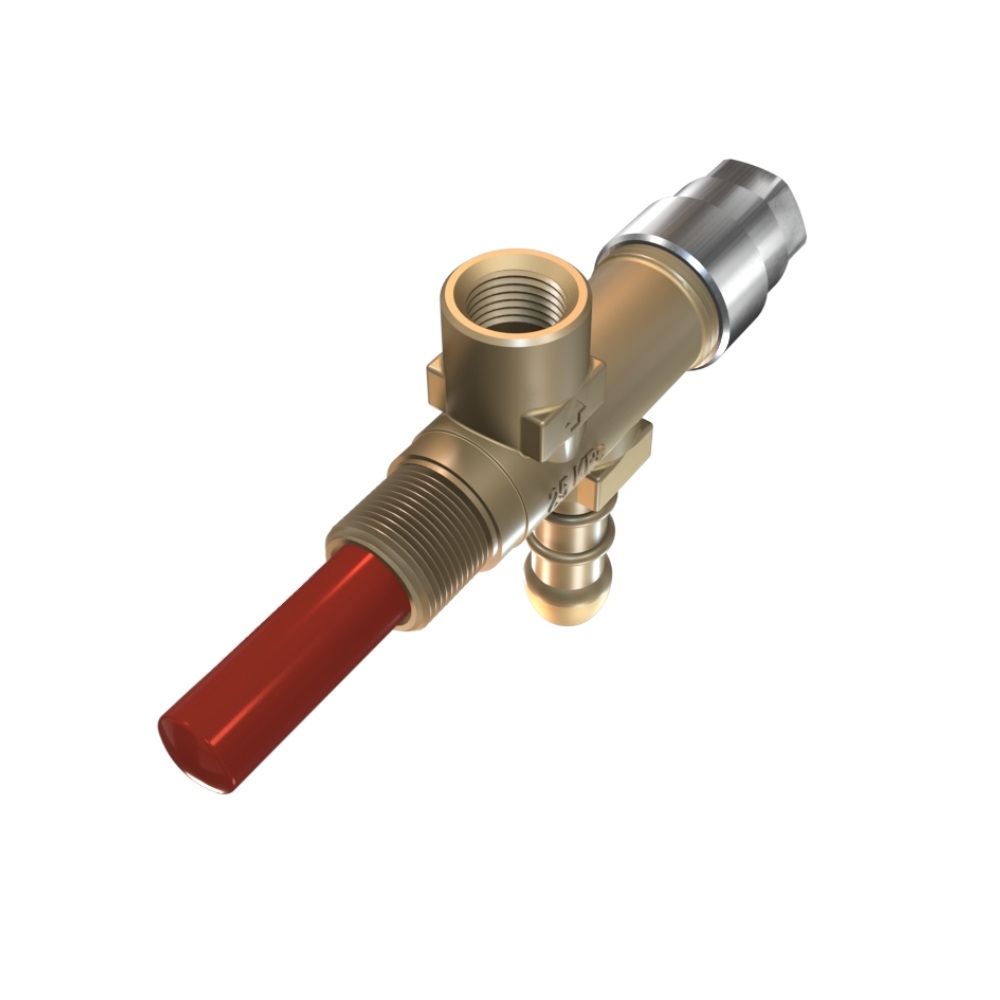

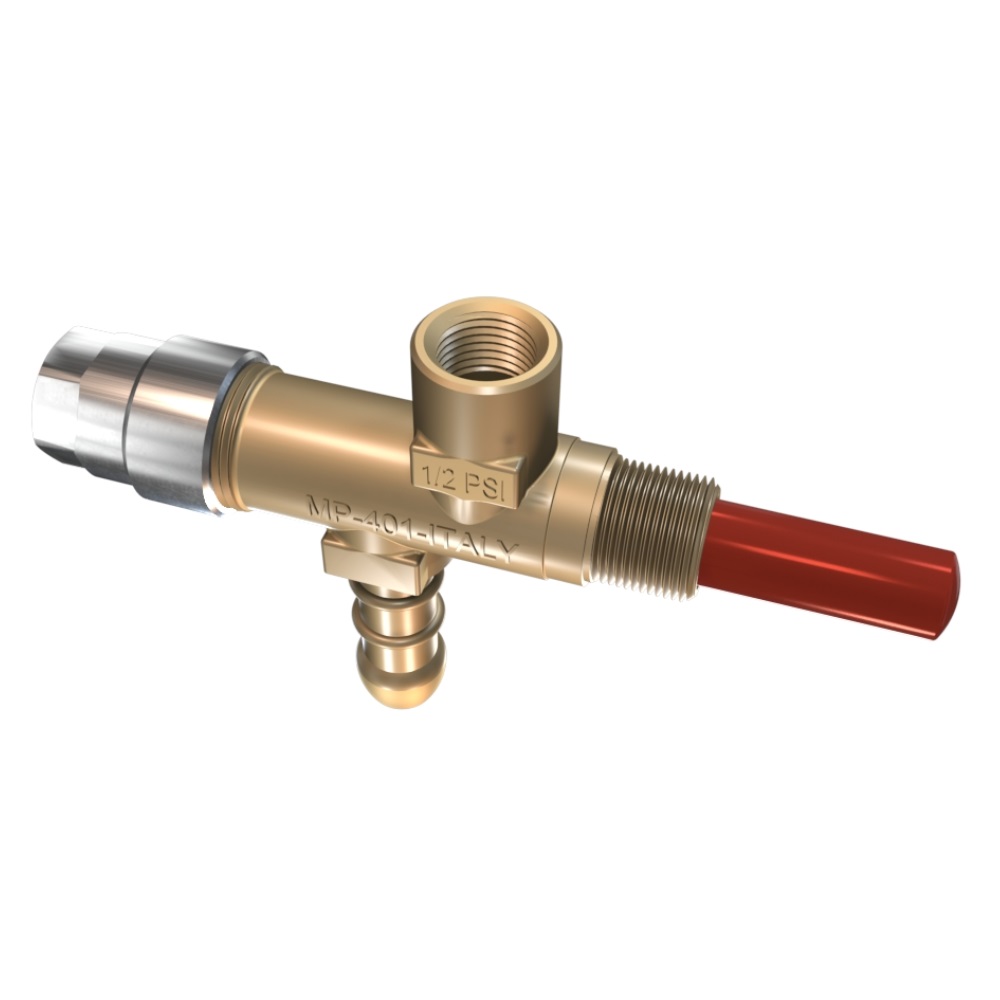

ON/OFF push-button safety valve
Max working pressure from 250 mbar up to 4 bar
Customizable product
For Application Advice
Please Call
Please Call
- 01684 566163
CE Approval: in accordance with GAR EU/2016/426
| Max. pressure | Range of temperature | N° CE certificate |
| 250 mbar | 0°-150° | 0085AP0329 |
| 2,1 bar | 0°-80° | 0085AP0329 |
| 4 bar | 0°-100° |
- Functioning: ON/OFF
- Gas inlet connection: male or female thread according to DIN EN 10226-1; flanged pipe screw connection; double cone ring screw connection with nut or nut screw.
- Gas outlet connection: Various (male or female thread; nozzle)
- Fitted with: safety device for flame control
- Applications: heating
- Group: 2
- Kind of gas: I, II, III
- Safety device endurance test: 10.000 (CE)
Flow rates: Flow rate index (Δp=7,5 mbar): > 95% of 0,26 m^3/h
