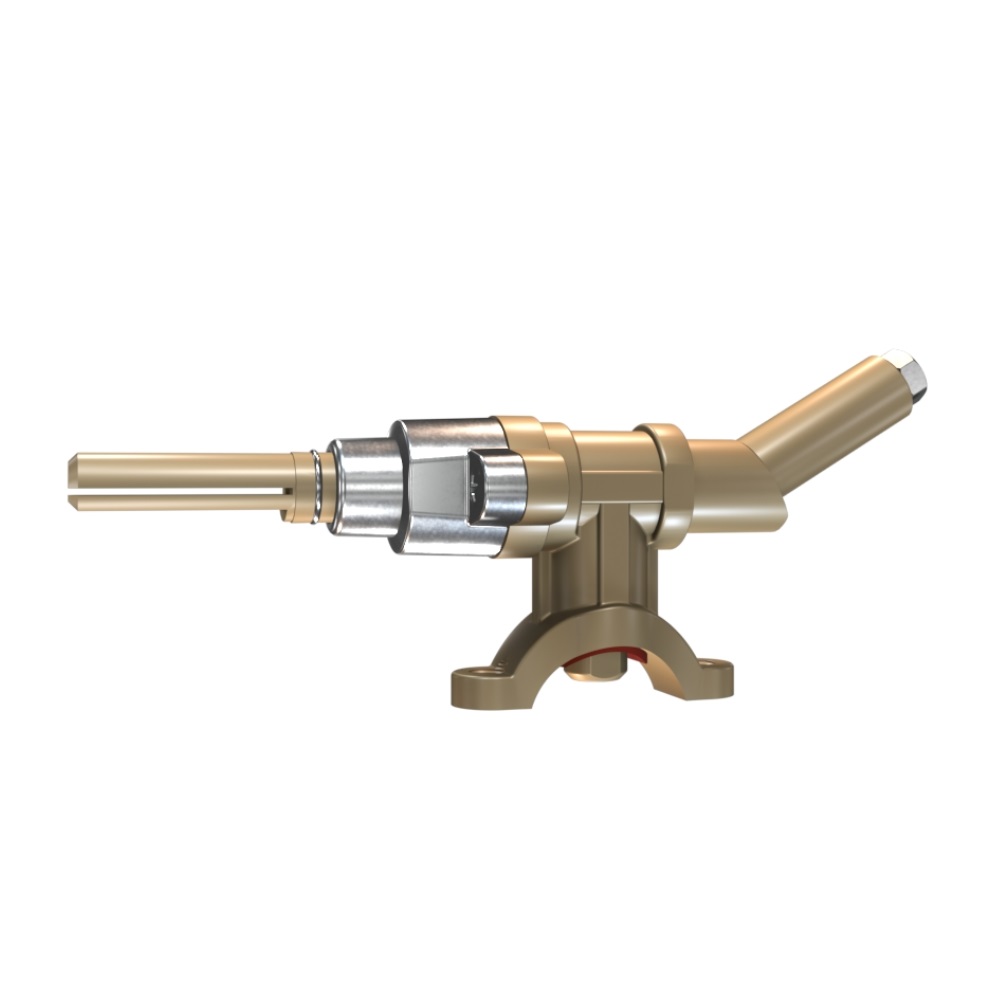

ART. 101 for Oven

ART. 101 for Oven
Clamp-on adjustable gas valve.
Clamp-on adjustable gas valve.
1. Gas inlet (Tube Ø 16 or others)
2. Spindle for knob
3. Max. working pressure (7kPa for CE and 1/2 psi for CSA)
4. Manufacturer and product family
5. Gas flow direction
6. Gas outlet
7. Low adjusting screw
8. Production date (year/week), valve code and max. temperature.
1.2 – Technical properties
CE Approval: in accordance to GAR EU/2016/426 – Certificate N°: CE-0085AQ0788
Working temperature: 0°C – 150°C / 0°C – 80°C
Max working pressure: 7kPa (65 mbar)
Working angular rotation: 90°-160°-225°
Position of maximum: 90°
Gas inlet connection: flange clamp screwing
Gas outlet connection: various
Knob shaft connection: max. Ø 8
Fitted with: adjustable low rate screw
Applications: cooking
Group: 2
Installation position: any
Kind of gas: I, II, III
Tap endurance test: 40.000 (CE) – 10.000 (CSA)
Flow rates – inlet Ø 16 manifold / outlet 1⁄4
Flow rate index : > 95% of 340* L/h
Reduced flow rate (min. or by-bass): value declared + 5 %; max. 80* L/h * = (Air – ΔP 1 mbar – inlet pressure: 20 mbar)
