F3P160-EC092-100

F3P160-EC092-100

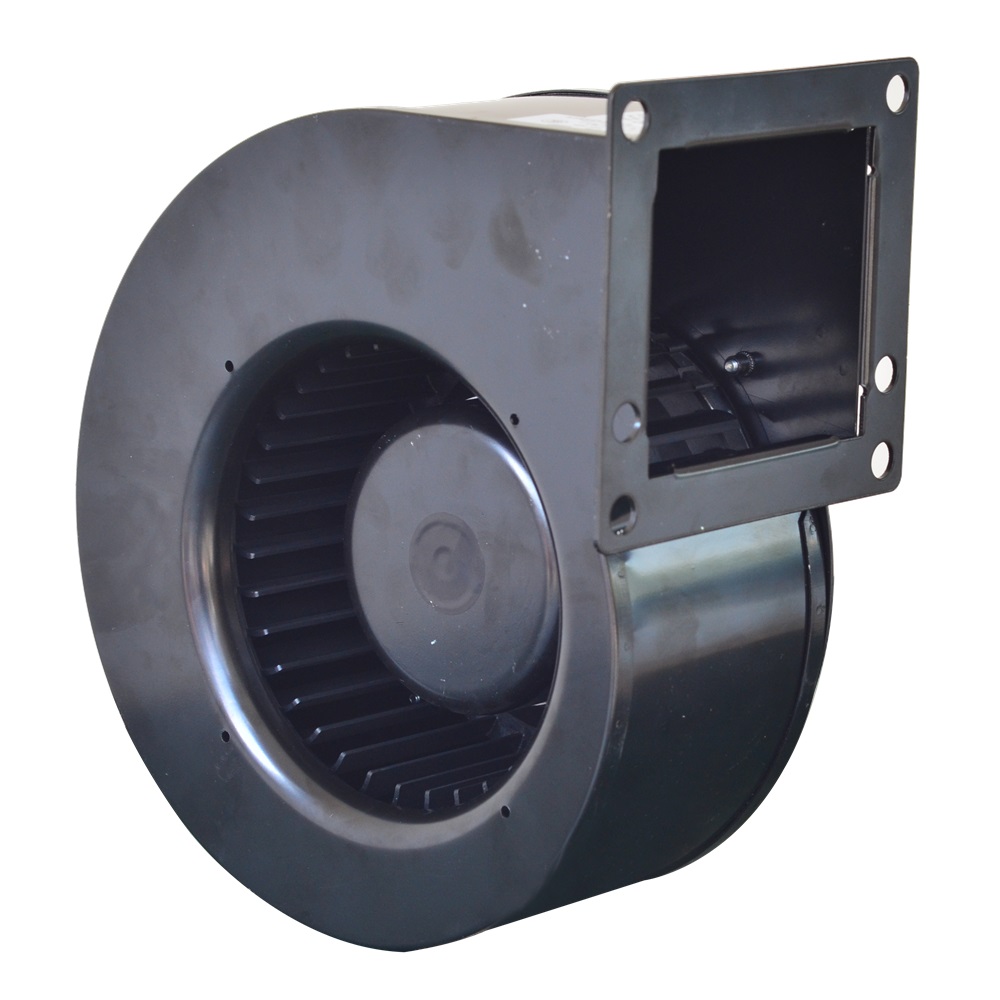

Product Type: Ø160mm EC Single Inlet Forward Centrifugal Fan
Voltage: 220 VAC – 50/60Hz
Material: Wheel PA66 & Body Steel
Type of protection: IP44
Approvals: CCC CE
Insulation class: B
Product Type: Ø160mm EC Single Inlet Forward Centrifugal Fan
Voltage: 220 VAC – 50/60Hz
Material: Wheel PA66 & Body Steel
Type of protection: IP44
Approvals: CCC CE
Insulation class: B
Type | Curve | Nominal voltage | Frequency | Speed | Power input | Current draw | Sound pressure | Ambient temp. |
VAC | Hz | rpm | W | A | dB(A) | ℃ | ||
F3P160-EC092-100 | ② | 220 | 50/60 | 2150 | 150 | 1 | 69 | -25~+60 |
