F3P120-EC072-010

F3P120-EC072-010

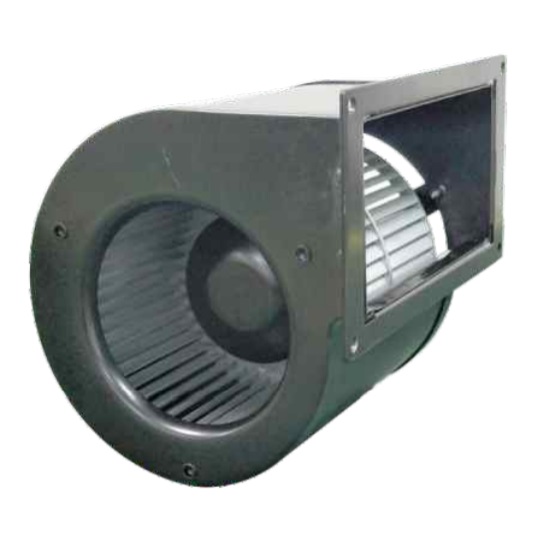

Product Type: Ø250mm EC Double Inlet Forward Centrifugal Fan
Voltage: 220 VAC – 50/60Hz
Material: Wheel & Body Steel
Type of protection: IP44
Approvals: CCC CE
Insulation class: B
Product Type: Ø250mm EC Double Inlet Forward Centrifugal Fan
Voltage: 220 VAC – 50/60Hz
Material: Wheel & Body Steel
Type of protection: IP44
Approvals: CCC CE
Insulation class: B
Type | Curve | Nominal voltage | Frequency | Speed | Power input | Current draw | Sound pressure | Ambient temp. |
VAC | Hz | rpm | W | A | dB(A) | ℃ | ||
F3P120-EC072-010 | ① | 220 | 50/60 | 1900 | 70 | 0.55 | 59 | -25~+60 |
