B3P155-EC072-001
B3P155-EC072-001

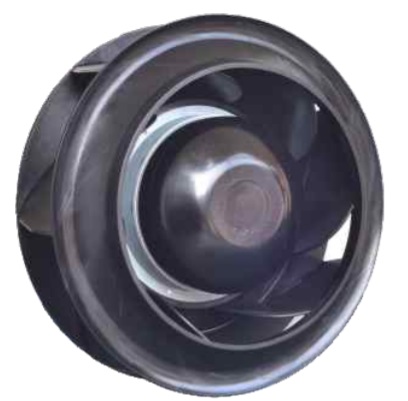

Product Type: Ø155mm 2 phase External rotor motor EC backward curved blower
Material: PA66
Type of protection: IP44
Approvals: CCC CE
Insulation class: B
For Application Advice
Please Call
Please Call
- 01684 566163
| Type | Curve | Nominal voltage | Frequency | Speed | Power input | Current draw | Sound pressure | Ambient temp. |
| VAC | Hz | rpm | W | A | dB(A) | ℃ | ||
| B3P155-EC072-001 | ① | 220 | 50/60 | 3570 | 40 | 0.3 | 63 | -25~+60 |
