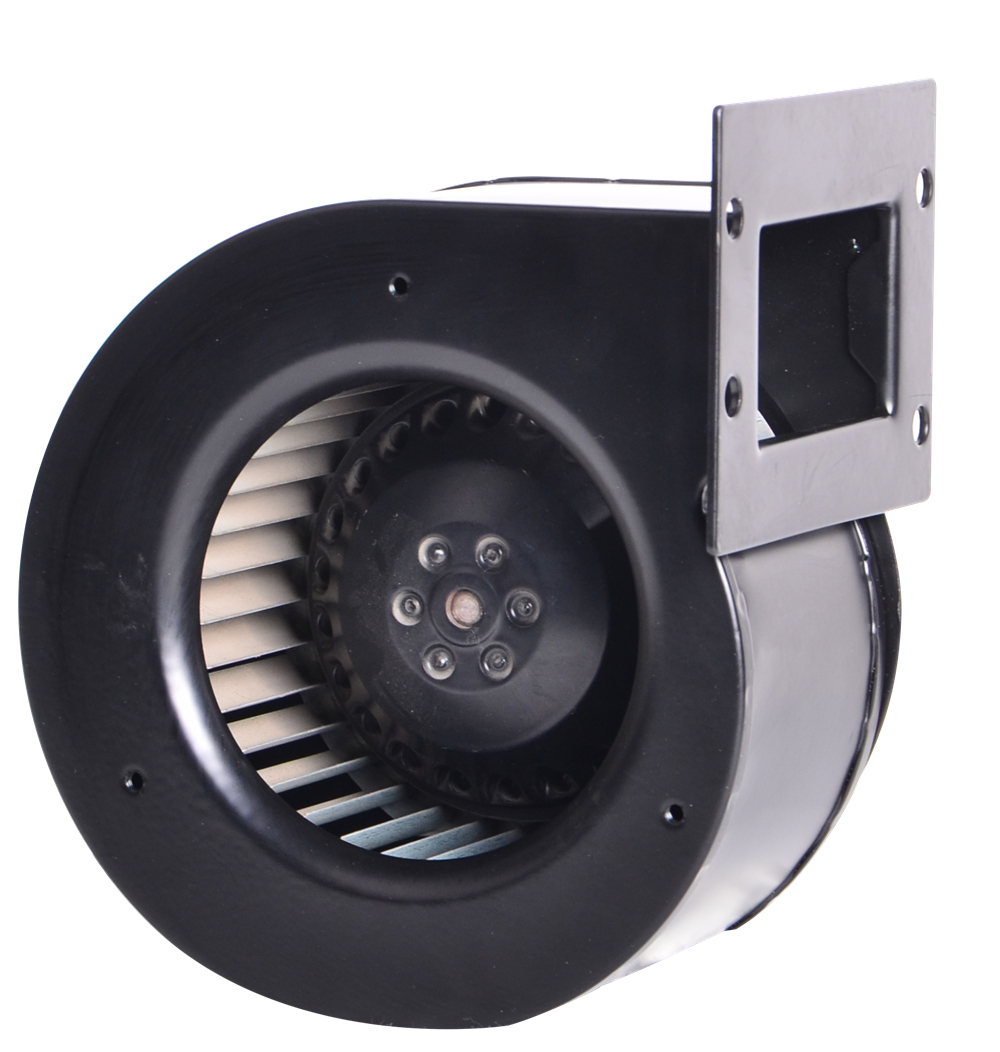

F2E120-060W-AA00
Product Types: Forward Centrifugal Fans
Material:Galvanised sheet steel
Protection Class:IP44
Approvals:CCC CE
Insulation class : F
| Voltage | Frequency | Current | Input Power | Speed | Capacity | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | μ F | m3/h/CFM | dB/A | Min/Max(℃) | # | |
| F2E120-060W-AA00 | 220/230 | 50 | 0.27 | 58 | 2400 | 1.5 | 200/120 | 51 | -30 /+60 | ① | CCC,CE,RoHS |
| 220/230 | 60 | 0.33 | 73 | 2500 | 1.5 | 210/124 | 53 | -30 /+60 | ② | CCC,CE,RoHS |
