A3P550-EC137 Range
A3P550-EC137 Range

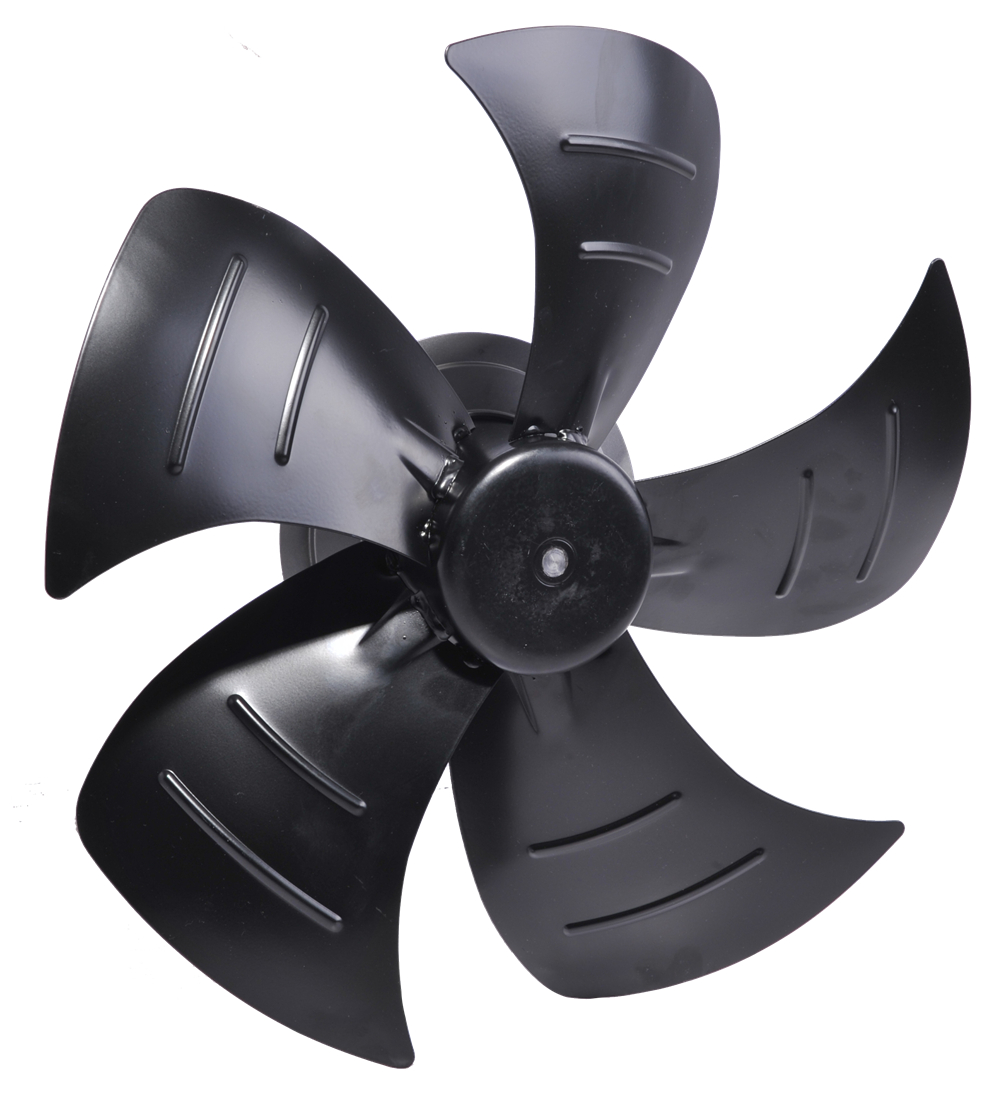

Product Type: Ø550mm 3 Phase External rotor motor axial fan
Material: Sheet steel
Type of protection: IP44
Approvals: CCC CE
Insulation class: B
For Application Advice
Please Call
Please Call
- 01684 566163
| Type | Curve | Nominal voltage | Frequency | Speed | Power input | Current draw | Sound pressure | Ambient temp. |
| VAC | Hz | rpm | W | A | dB(A) | ℃ | ||
| A3P550-EC137-004 A3P550-EC137-005 A3P550-EC137-100 A3P550-EC137-001 A3P550-EC137-002 A3P550-EC137-003 |
① | 3-380 | 50/60 | 1690 | 950 | 1.65 | 78 | -25~+60 |
