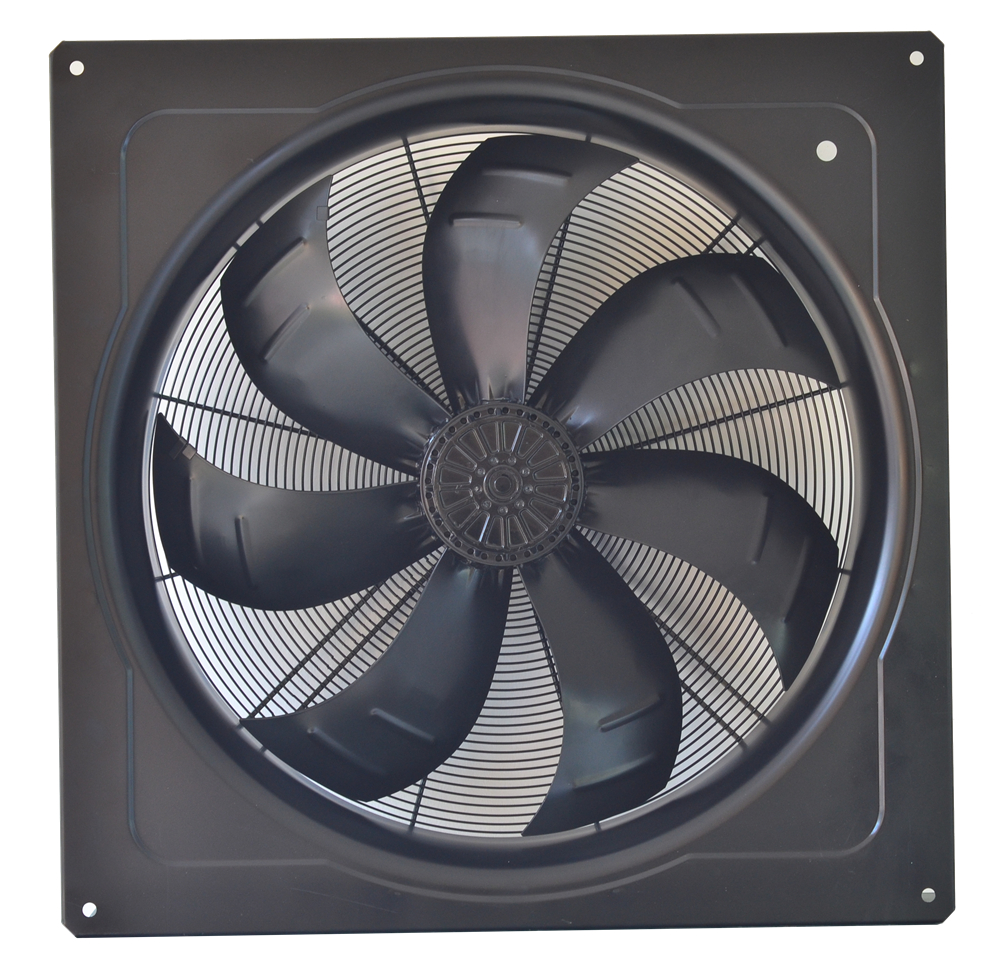

A6D800S-7FM-SX01 (380/400V)
Ø800mm 6 Pole 3 Phase External rotor motor axial fan
Material: Cold rolled steel
Protection Class: IP44
Approvals: CCC CE
Insulation class: F
| Voltage | Frequency | Current | Input Power | Speed | Capacity | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | μ F | m3/h/CFM | dB/A | Min/Max(℃) | # | |
| A6D800S-7FM-SX01 | 380/400 | 50 | 3.7 | 1850 | 900 | / | 25000/14500 | 80 | -30 /60 | ① | CCC,CE,RoHS |
| 2.3 | 1250 | 700 | / | 19000/11020 | 77 | ② | CCC,CE,RoHS |
