A2D230S-5AN-ACJ0 (380/400V)
A2D230S-5AN-ACJ0 (380/400V)

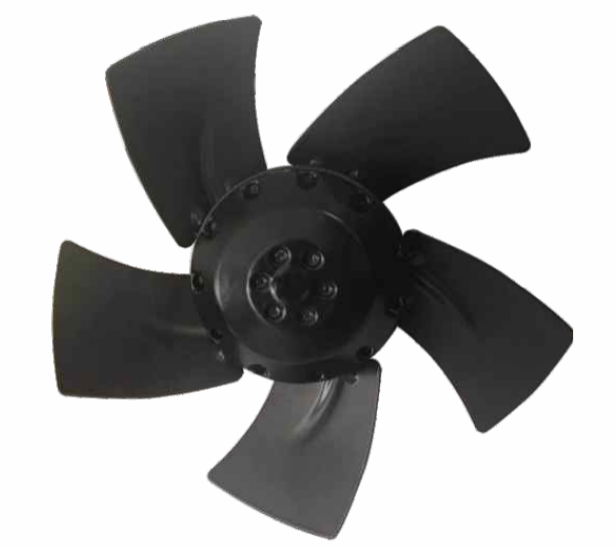

Ø230mm 2 Pole 3 Phase External rotor motor axial fan
Material: Cold rolled steel
Protection Class: IP44
Approvals: CCC CE
Insulation class: F
For Application Advice
Please Call
Please Call
- 01684 566163
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | μ F | m3/h/cfm | dB(A) | Min/Max(℃) | # | |
| A2D230S-5AN-ACJ0 | 380/400 | 50 | 0.23 | 90 | 2700 | / | 1250/737 | 59 | -30 /+60 | ① | CCC,CE,RoHS |
| 60 | 0.22 | 120 | 2950 | 1350/796 | 61 | ② |
