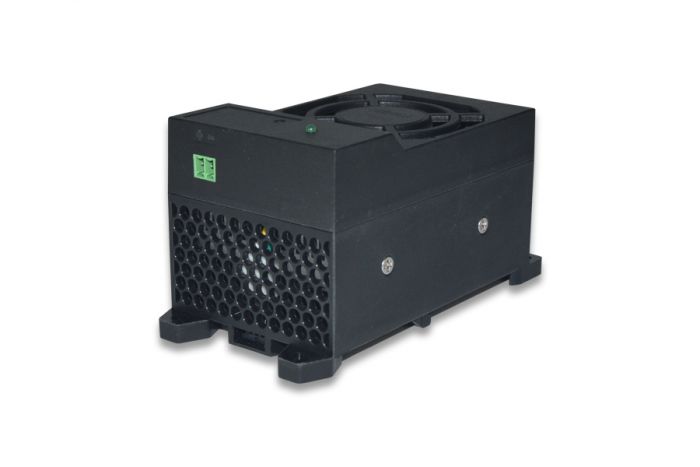

PN-D3024D
Our Mini Intelligent Dehumidifying Device adopts the semi-conducting cooling dehumidification method. The fans of the device absorb the moist air into an air tube from confined space. When the moist air contacts the cooling parts, the moisture in the air will turn into condensation water.
Condensation water under the effect of gravity drips into the water tank and drains off from the aqueduct. The recycling of the process drains the water of the cabinet in the form of condensation, so as to dehumidify and prevent condensation. The dehumidifying way of semiconductor refrigeration can reduce the amount of water in the air. It can also reduce both air humidity and relative humidity in the confined space.
Main Features
1. Small size, lightweight, and broad application.
2. Convenient installation with DIN35 rail/bolt.
3. Low power consumption, larger volume dehumidification.
4. Real-time sampling of humidity, rapid response to changes in ambient humidity.
5. Discharging and condensing in the dehumidification tube, heating and dehumidifying the effluent gas, dehumidifying anti-condensation comprehensively.
6. Drainage system condenses condensate water out of the cabinet timely.
7. Start and stop dehumidification values are adjustable.
8. Automatic defrosting at low temperature.
9. Automatic stopping at high temperature and double temperature switch protection.
Part No. | Model No. | Working power supply | Electric power | Humidity detection range | Humidity measurement accuracy | Dehumidification start value | Dehumidification stop value | Dehumidifying capacity | Storage temperature | Operating temperature | Outline dimension L X W X H (mm) | Net weight | Aqueduct specification |
| 47503 | PN-D3024D | DC – 24V | 30 W | 1% RH ~ 99% RH | +/- 3% RH | 55% RH | 35% RH | 250 ml/24h (35°C RH = 85%) | -30°C ~ 70°C | -10°C ~ 55°C | 125 (104) X 64 X 66 | 320 g | Heat-resistant silicone pipe L= 1m |
