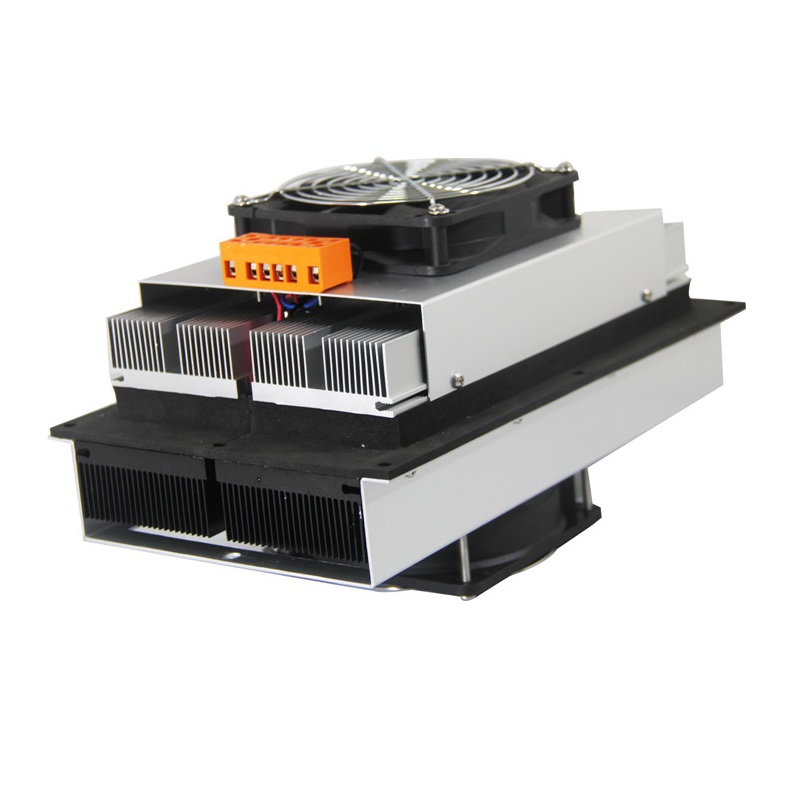

AA-150-24-00
AA-150-24-00
Max cooling power: 150W
Voltage: DC24V
We can also provide customised products to meet your specific requirements
For Application Advice
Please Call
Please Call
- 01684 566163
Manufactured in an ISO 9001:2008 & ISO/TS 16949:2009 certified facility and designed to meet the cooling needs of many thermal management applications in the medical, analytical, industrial, and telecom markets.
Key Features:
Compact design – developed for enclosed area climate control
Precise temperature control, maintaining a suitable ambient temperature
Reliable solid-state operation with only one moving part–the fan motor. No compressors, coils, or gases
DC operation
RoHS compliant
Chamber cooling/ heating temperature control.
MTBF: <=100,000 hours
Application:
Analytical instrumentation
Medical diagnostics
Photonics laser systems
Industrial instrumentation
Food and beverage cooling
| Part No. | Model No. | Pc max (W) | Current (A) | Voltage (V) | Fan Position | Input Power (W) | COP | Ambient (°C) | Weight (KG) | Dimensions L X W X H (mm) |
| 47512 | AA-150-24-00 | 143 | 9.8 | 24 | Hot & Cold sides | 235 | 0.61 | -10 ~ 50 | 5.0 | 300 X 181 X 179 |
