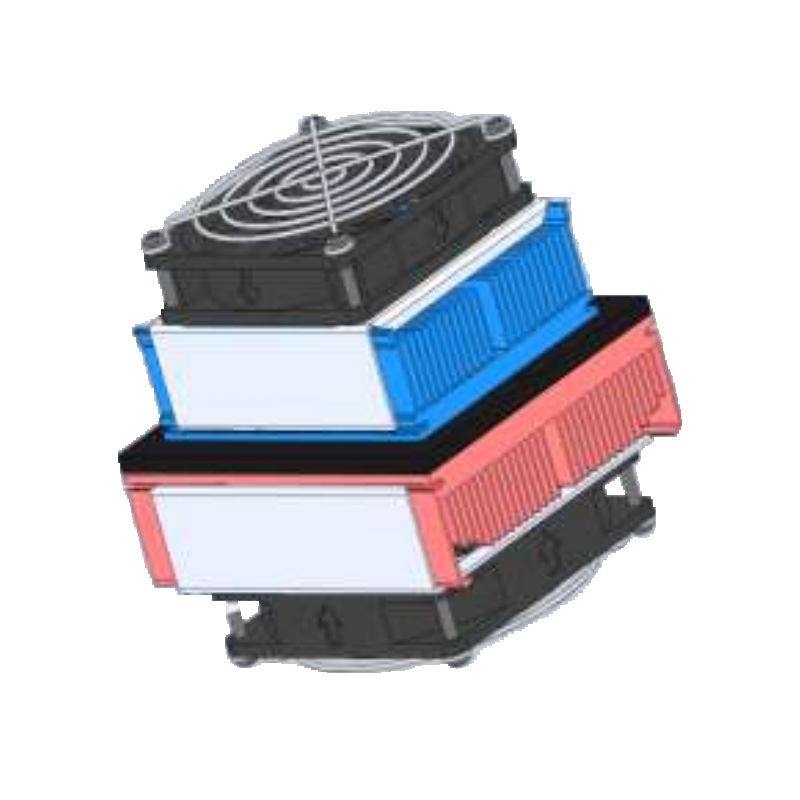

AA-034-12-00

AA-034-12-00
Max cooling power: 35W
Voltage: DC12V
We can also provide customised products to meet your specific requirements
Max cooling power: 35W
Voltage: DC12V
We can also provide customised products to meet your specific requirements
Manufactured in an ISO 9001:2008 & ISO/TS 16949:2009 certified facility and designed to meet the cooling needs of many thermal management applications in the medical, analytical, industrial, and telecom markets.
Key Features:
Compact design – developed for enclosed area climate control
Precise temperature control, maintaining a suitable ambient temperature
Reliable solid-state operation with only one moving part–the fan motor. No compressors, coils, or gases
DC operation
RoHS compliant
Chamber cooling/ heating temperature control.
MTBF: <=100,000 hours
Application:
Analytical instrumentation
Medical diagnostics
Photonics laser systems
Industrial instrumentation
Food and beverage cooling
Part No. | Model No. | Pc max (W) | Current (A) | Voltage (V) | Fan Position | Input Power (W) | COP | Ambient (°C) | Weight (KG) | Dimensions L X W X H (mm) |
47505 | AA-034-12-00 | 35 | 5.0 | 12 | Hot & Cold sides | 60 | 0.81 | -10 ~ 50 | 1.0 | 120 X 110 X 125 |
