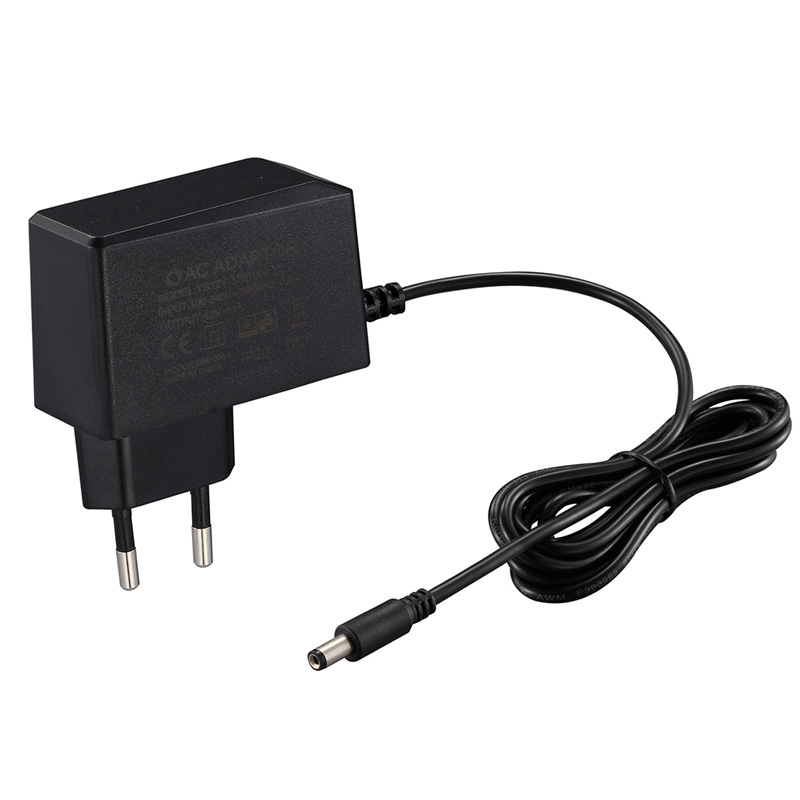

12W Wall Mount Type YS12V-E
12W Wall Mount Type YS12V-E
Rated Power: 12W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.1W
Efficiency Level: DOE VI / COCV5
Protection: Short Circuit, OCP, OVP, OTP
Output: 5-36V
For Application Advice
Please Call
Please Call
- 01684 566163
| Model： | YS12V-xxxyyyyE |
| Power: | 12W max. |
| Input： | 100-240VAC 50/60Hz |
| Output Voltage: | 5-36V |
| Output Current: | 0.1-2A |
| Input current: | 0.26A max. |
| Inrush Current: | 30 Amps max. at 230VAC/50Hz, full load |
| Leakage Current: | 0.25mA Max. at 264VAC input |
| Energy Efficiency Level VI : | CoC 5 / DoE 6 / CEC VI |
| No Load Power Consumption ： | ＜0.075W |
| Protections： | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP)： | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity： | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input Plug: | EU 2pin |
| Certificates and approvals: | UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH |
| EMI EMISSION: | Radiation Test & Conduction Test: EN 55022/FCC Part 15 Harmonic Test: EN 61000-3-2 Flicker Test: EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test: EN 61000-4-2 RS Test: EN 61000-4-3 EFT Test: EN 61000-4-4 Surge Test: EN 61000-4-5 CS Test: EN 61000-4-6 MF Test: EN 61000-4-8 DIP Test: EN 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25℃ ambient |
| Life: | 3-5 years alternative |
| Dimension: | 63.5*28.5*76mm |
| Weight: | 120g |
| Packing: | 100PCS/CTN, 42*36*22mm |
| Model: | YS12V-0502000E | YS12V-0901300E | YS12V-1201000E | YS12V-1500800E | YS12V-2400500E | YS12V-3600350E |
| DC Voltage: | 5V | 9V | 12V | 15V | 24V | 36V |
| Rated Current: | 2A | 1.3A | 1A | 0.8A | 0.5A | 0.35A |
| Current Range: | 0-2A | 0-1.3A | 0-1A | 0-0.8A | 0-0.5A | 0-0.35A |
| Rated Power: | 10W | 11.7W | 12W | 12W | 12W | 12.6W |
| Ripple & Noise(max.): | 50mVp-p | 90mVp-p | 120mVp-p | 120mVp-p | 240mVp-p | 300mVp-p |
| Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Efficiency: | 79.00% | 83.12% | 83.26% | 83.26% | 83.26% | 83.54% |
| Setup, Rise, Hold up time: | 3 secs max./40 MS max./5 MS max. at 100VAC input and output max. load. | |||||
