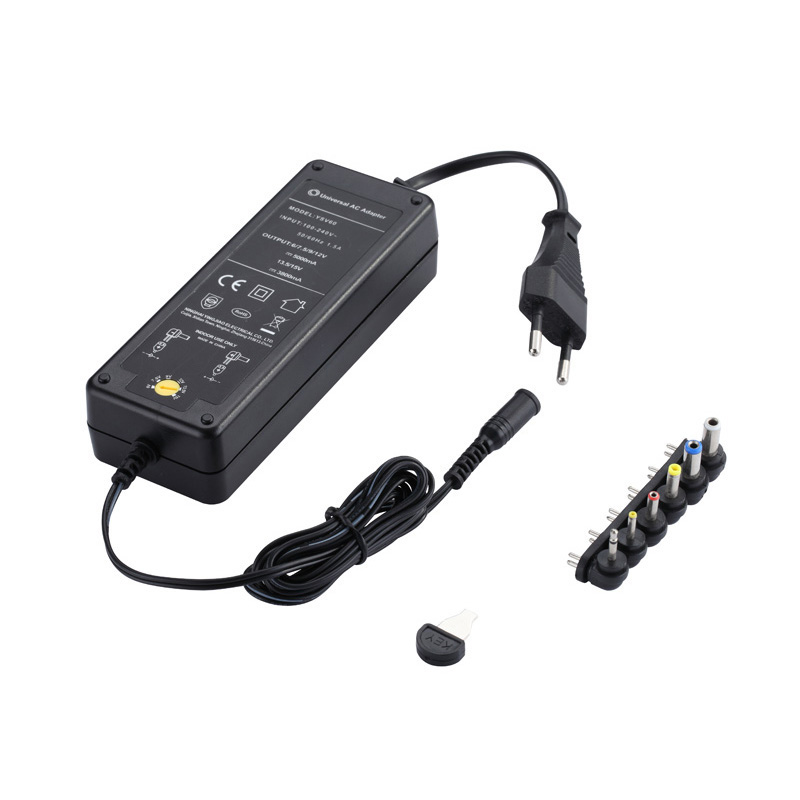

60W Desktop Type YSV60 (AC Cord)
For Application Advice
Please Call
Please Call
- 01684 566163
Model：
YSV60
Power:
60W max.
Input：
100-240VAC 50/60Hz
Output Voltage1:
3V 4.5V6V 7.5V 9V 12V13.5V 15V16V DC
Output Current 1:
5A3.8A
Output Voltage 2:
9V 12V13.5V 15V18V20V24V
Output Current 2:
3.8A2.5A
Input current:
1A max.
Inrush Current:
65 Amps max. at 230VAC/50Hz,full load
Leakage Current:
0.25mA Max. at 264VAC input
Energy Efficiency Level VI :
V
No Load Power Consumption ：
＜0.3W
Protections：
Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP)：
Protection to Zero Voltage
Over Voltage Protection (OVP):
≤Vout*150%
Over Current Protection (OCP):
110%-180%
Working TEMP.:
-20°C-50°C
Working Humidity：
5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:
-40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:
EU
Certificates and approvals:
CB,GS,CE,EMC,CCC,RoHS,REACH
EMI EMISSION:
Radiation Test&Conduction Test: EN 55022/FCC Part 15
Harmonic Test : EN 61000-3-2
Flicker Test : EN 61000-3-3
EMS IMMUNITY:
ESDTest:EN 61000-4-2
RSTest:EN 61000-4-3
EFTTest:EN 61000-4-4
Surge Test:EN 61000-4-5
CSTest:EN 61000-4-6
DIPTest:EN 61000-4-11
MTBF:
100000 hours minimum at full load at 25℃ ambient
Life:
3-5 years alternative
Dimension:
138*52*33.5mm
Weight:
299g
Packing:
50PCS/CTN,73*41*23cm
