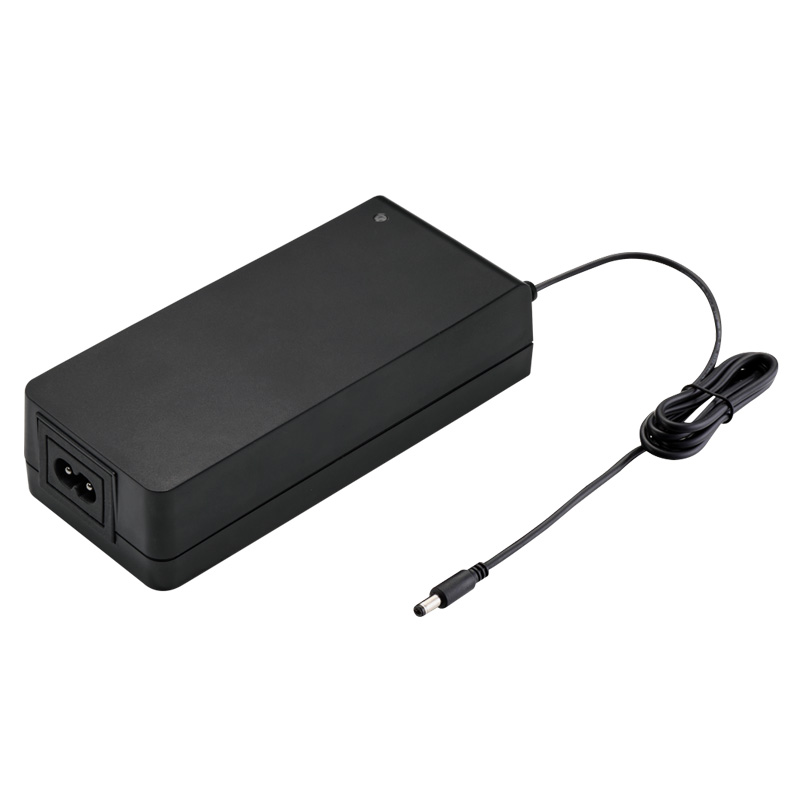

90W Desktop Type YS90
90W Desktop Type YS90
Rated Power: 90W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.5W
Efficiency Level: DOE VI / COCV5
Protection: Short Circuit, OCP, OVP, OTP
Output: 5-48V
For Application Advice
Please Call
Please Call
- 01684 566163
| Power: | 90W |
| Input： | AC100-240V |
| Inrush Current: | 70 Amps max |
| Leakage Current: | ＜100μA |
| No Load Power Consumptiont: | ＜0.21W |
| Short Circuit Protection(SCP): | Protection to Zero Voltage |
| Over Voltage Protection(OVP)： | ≤Vout*150% |
| Over Current Protection(OCP)： | 110%-180% |
| Withstand Voltage： | I/P-O/P 4kVAC |
| Working TEMP: | -10°C-70°C |
| EMC standards): | EN 60601-1-2, IEC 60601-1-2, FCC PART 15, FCC PART 18, AS IEC 60601.12.2 |
| Safety standards: | EN 60601-1, IEC 60601-1, ANSI / AAMI ES60601-1,AS/ AS / NAX 60601.1 |
| Dimension: | 115.5*56*33mm |
