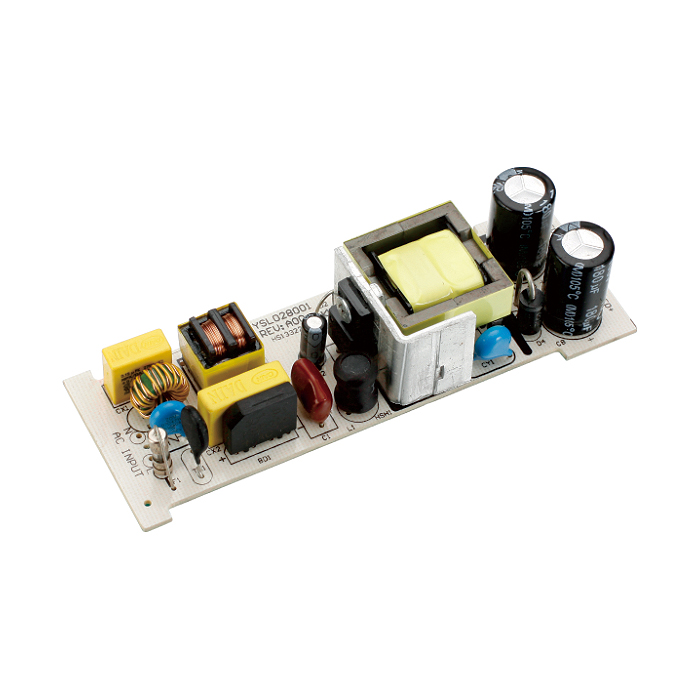

28W Type YSLO28

Rated Power: 28W
Input: 100-240V AC 50 / 60Hz
Output: 5-36V
Dimension: 111*39.5*16mm
N.W.: 80g

Model：	YSLO28
Power:	28W max.
Input：	100-240VAC 50/60Hz
Output Voltage:	5-36V
Output Current:	0.01-4A
Input current:	0.8A max.
Inrush Current:	50 Amps max. at 240VAC/50Hz,full load
Leakage Current:	0.25mA Max. at 240VAC input
Energy Efficiency Level VI :	CoC 5 / DoE 6 / CEC VI
No Load Power Consumption ：	＜0.075W
Protections：	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP)：	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity：	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:	EU,US,UK,AU etc. type according to customer’s choice
Certificates and approvals:	UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION:	Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3
EMS IMMUNITY:	ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11
MTBF:	100000 hours minimum at full load at 25℃ ambient
Life:	3-5 years alternative
Dimension:	11139.516mm
Weight:	80g
Packing:	50PCS/CTN,452630cm

Model:	YSLO28-0504000	YSLO28-1202300	YSLO28-1501860	YSLO28-2001400	YSLO28-2501120	YSLO28-3600770
DC Voltage:	5V	12V	15V	20V	25V	36V
Rated Current:	4A	2.3A	1.86A	1.4A	1.12A	0.77A
Current Range:	0-4A	0-2.3A	0-1.86A	0-1.4A	0-1.12A	0-0.77A
Rated Power:	20W	28W	28W	28W	28W	28W
Ripple & Noise(max.):	90mVp-p	120mVp-p	200mVp-p	200mVp-p	250mVp-p	360mVp-p
Voltage Tolerance:	±5%	±5%	±5%	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%	±3%	±3%	±3%
Load Regulation:	±5%	±5%	±5%	±5%	±5%	±5%
Efficiency:	83.68%	87.38%	87.42%	87.44%	87.44%	87.40%
Setup,Rise,Hold up time:	3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.
