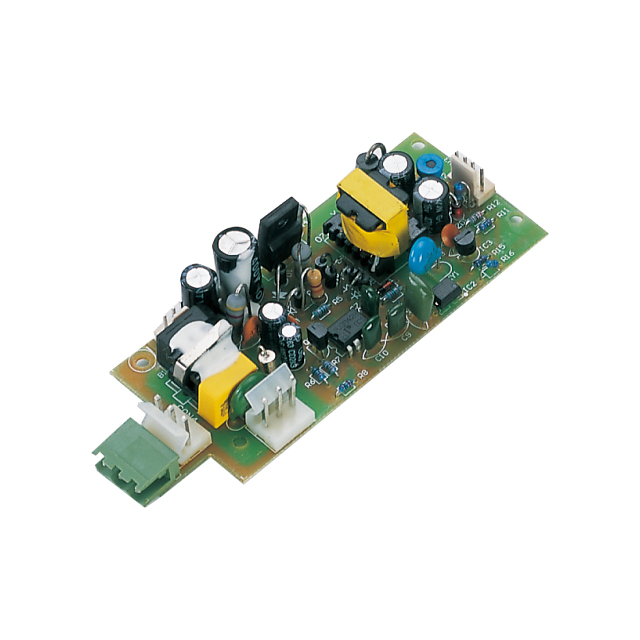

10W Type YSO10

Rated Power: 10W
Input: 100-240V AC 50 / 60Hz
Output: 5-36V
Dimension: 115*42*22mm
N.W.: 90g

Model：	YSO10
Power:	10W max.
Input：	100-240VAC 50/60Hz
Output Voltage:	5-36V
Output Current:	0.1-2A
Input current:	0.5A max.
Inrush Current:	30 Amps max. at 230VAC/50Hz,full load
Leakage Current:	0.25mA Max. at 264VAC input
Energy Efficiency Level VI :	CoC 5 / DoE 6 / CEC VI
No Load Power Consumption ：	＜0.075W
Protections：	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP)：	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity：	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:	EU,US,UK,AU etc. type according to customer’s choice
Certificates and approvals:	UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION:	Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3
EMS IMMUNITY:	ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11
MTBF:	100000 hours minimum at full load at 25℃ ambient
Life:	3-5 years alternative
Dimension:	1154222mm
Weight:	90g
Packing:	50PCS/CTN,4528.531cm

Model:	YSO10-0502000	YSO10-1200800	YSO10-1500660	YSO10-2000500	YSO10-2500400	YSO22-3600270
DC Voltage:	5V	12V	15V	20V	25V	36V
Rated Current:	2A	0.8A	0.66A	0.5A	0.4A	0.27A
Current Range:	0-2A	0-0.8A	0-0.66A	0-0.5A	0-0.4A	0-0.27A
Rated Power:	10W	9.6W	10W	10W	10W	9.7W
Ripple & Noise(max.):	90mVp-p	120mVp-p	200mVp-p	200mVp-p	250mVp-p	360mVp-p
Voltage Tolerance:	±5%	±5%	±5%	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%	±3%	±3%	±3%
Load Regulation:	±5%	±5%	±5%	±5%	±5%	±5%
Efficiency:	79%	81.95%	82.14%	82.20%	82.20%	82.03%
Setup,Rise,Hold up time:	3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.
