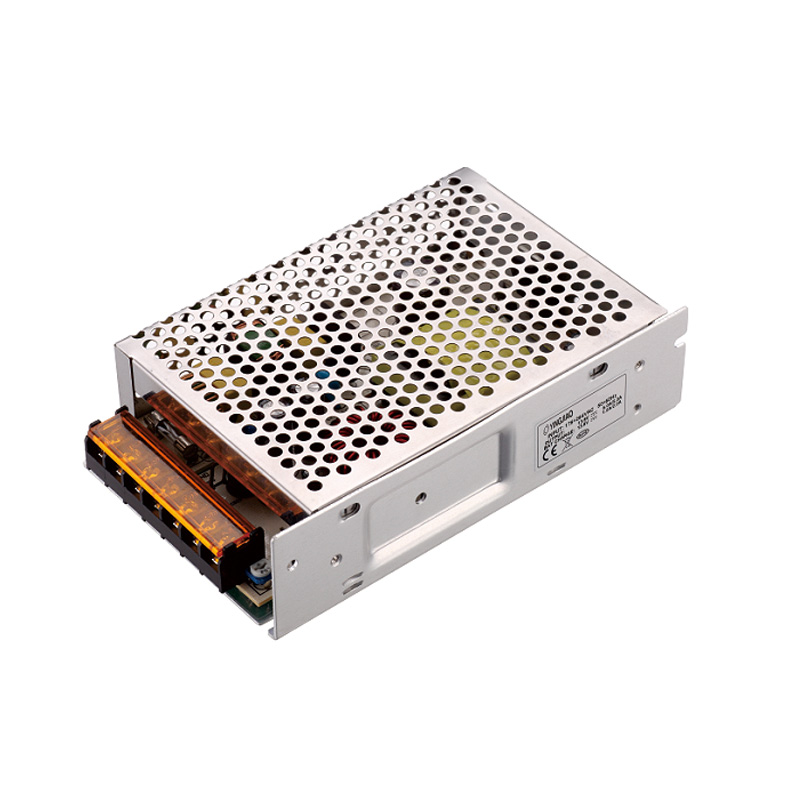

120W Type YSI-120

Rated Power: 150W
Input: 90-264V AC, 50 / 60Hz

With battery backup optional

Protection: Short Circuit, OCP, OVP
Output: 5-48V

Category: Framed Type

Model：	YSI-120
Power:	120W max.
Input：	110/230VAC 50/60Hz
Output Voltage:	5-48V
Output Current:	0.01-20A
Input current:	2.0A max.
Inrush Current:	Cold start 45A. at 240VAC/50Hz,full load
Leakage Current:	2mA max. at 240VAC input
Protections：	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP)：	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-60°C
Working Humidity：	20%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Certificates and approvals:	CE,EMC,FCC,CCC,RoHS,REACH
EMI EMISSION:	Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3
SAFETY STANDARDS:	EN 60950-1:2006+A11:2009+A1:2010+A12:2011
MTBF:	100000 hours minimum at full load at 25℃ ambient
Life:	3-5 years alternative
Dimension:	1609842mm (LWH)
Weight:	410g
Packing:	34.529.522.5CM/20PCS

Model:	YSI-0502000	YSI-1201000	YSI-1500800	YSI-2400600	YSI-3600330	YSI-480250
DC Voltage:	5V	12V	15V	20V	36V	48V
Rated Current:	20A	10A	8.0A	6.0A	3.3A	2.5A
Current Range:	0-20A	0-10A	0-8.0A	0-6.0A	0-3.3A	1-2.5A
Rated Power:	100W	120W	120W	120W	120W	120W
Ripple & Noise(max.):	100mVp-p	120mVp-p	150mVp-p	240mVp-p	360mVp-p	480mVp-p
Voltage Tolerance:	±5%	±5%	±5%	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%	±3%	±3%	±3%
Load Regulation:	±5%	±5%	±5%	±5%	±5%	±5%
Setup,Rise,Hold up time:	3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.
