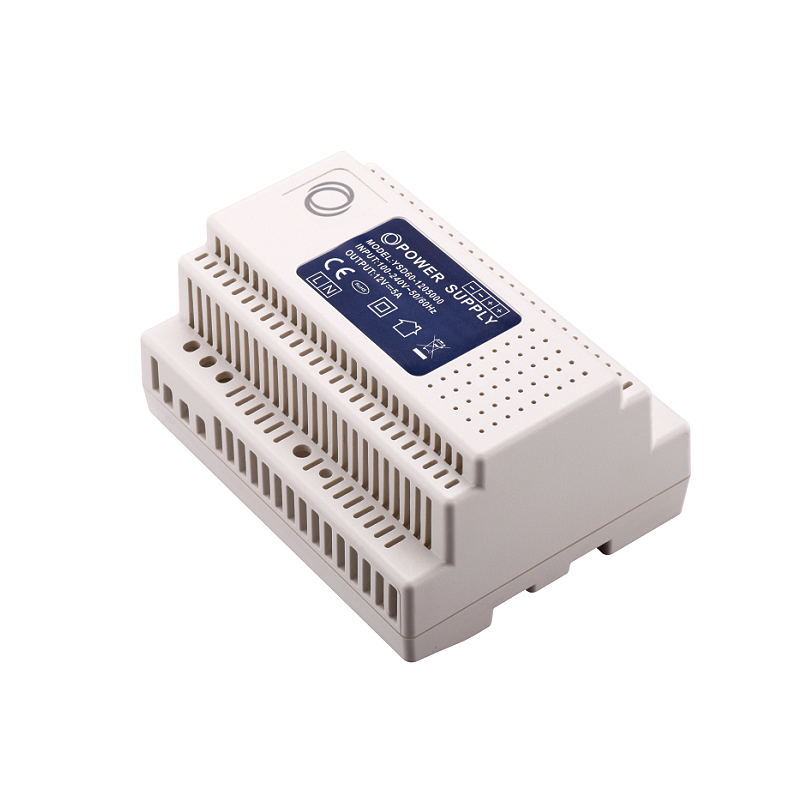

60W Step Type YSD60
60W Step Type YSD60
Rated Power: 60W
Input: 100-240V AC, 50 / 60Hz
Standby Power: <0.3W
DC output voltage adjustable
Protection: Short Circuit, OCP, OVP
Output: 5-48V
For Application Advice
Please Call
Please Call
- 01684 566163
| Model information | YSD60 |
| Power: | 60W max. |
| Input： | 100-240VAC 50/60Hz |
| Output Voltage: | 5-36V |
| Output Current: | 0.1-5A |
| Input current: | 1.5A max. |
| Inrush Current: | 90 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 0.25mA Max. at 264VAC input |
| Energy Efficiency Level : | level V |
| No Load Power Consumption ： | ＜0.15W |
| Protections： | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP)： | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity： | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Certificates and approvals: | CE,EMC, |
| EMI EMISSION: | Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11 |
| RoHs compliance | ROHS directive ” 2011/65/EU “ |
| MTBF: | 100000 hours minimum at full load at 25℃ ambient |
| Burn-in | The power supply shall be burn-in for 2 hours under nominal input and 100% load at ambient temperature of 25 degrees C |
| Life: | continuously operation for 3 years alternative |
| Dimension: | 117x92x61mm |
| Weight: | 270g |
| Packing: | 50PCS/CTN,43*30*34CM |
| Model: | YSD60-0705000 | YSD60-0905000 | YSD60-1205000 | YSD60-1504000 | YSD60-2402500 | YSD60-3601600 |
| DC Voltage: | 7V | 9V | 12V | 15V | 24V | 36V |
| Rated Current: | 5A | 5A | 5A | 4A | 2.5A | 1.6A |
| Rated Power: | 35W | 45W | 60W | 60W | 60W | 57.6W |
| Ripple & Noise(max.): | 70mVp-p | 90mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | 360mVp-p |
| Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Setup,Rise,Hold up time: | 3 second max./40 MS max./5 MS max. at 100VAC input and output max. load. | |||||
