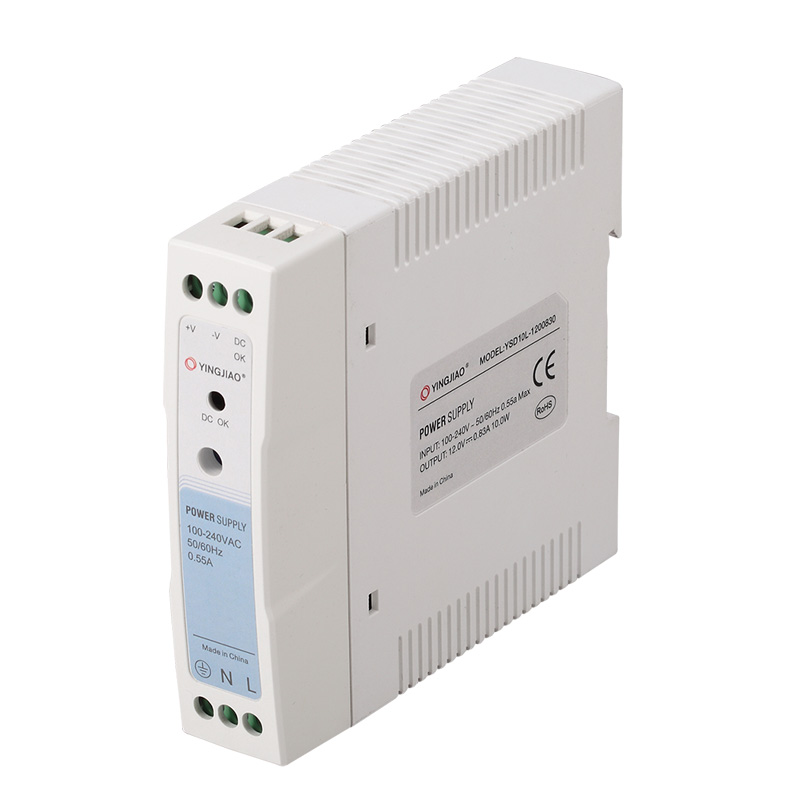

10W Slimline Type YSD20L-10
10W Slimline Type YSD20L-10
Rated Power: 10W
Input: 85-264V AC, 50 / 60Hz
Standby Power: ≤0.1W
Efficiency Level: DOE VI
Protection: Short Circuit, OCP, OVP, OTP
Output: 5-24V
For Application Advice
Please Call
Please Call
- 01684 566163
| MODEL DETAIL SPEC. | YSD20L-0502000 | YSD20L-1200840 | YSD20L-1500670 | YSD20L-2400420 | ||
| INPUT | Input Voltage: | 85-264VAC | ||||
| Input Frequency: | 50/60Hz | |||||
| Inrush Current: | 35A/115VAC 70A/230VAC | |||||
| AC Current: | 0.33A/115VAC 0.21A/230VAC | |||||
| Efficiency: | 77% | 81% | 81% | 84% | ||
| OUTPUT | DC Voltage: | 5V | 12V | 15V | 24V | |
| Rated Current : | 2A | 0.84A | 0.67A | 0.42A | ||
| Rated Power: | 10W | 10W | 10W | 10W | ||
| Ripple and Noise: | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | ||
| Line Regulation: | ±1% | |||||
| Load Regulation: | ±5% | ±3% | ±3% | ±2% | ||
| Setup, Rise, Hold Up time: | 500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |||||
| ENVIRONMENTAL | Operating Temperature: | -20 ~ +60 (Refer to “Derating Curve”) | ||||
| Storage Temperature: | -40℃ ~ 85℃ | |||||
| Storage Humidity: | 10 ~ 95% RH | |||||
| Working Humidity: | 20 ~ 95% RH non-condensing | |||||
| PROTECTION | Over Load Protection: | 105%-150% rated output power | ||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||||
| Over Voltage Protection: | 5V:5.75~ 6.75V 12V:13.8 ~ 16.2V 15V:17.25 ~ 20.25V 24V:27.6 ~ 32.4V |
|||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| Over Temperature: | Shut down o/p voltage, re-power on to recover | |||||
| FUNCTION | DC OK ACTIVE SIGNAL(max.) |
3.75 ~ 6V / 50mA |
9 ~ 13.5V / 40mA |
11.5 ~ 16.5V / 40mA |
18 ~ 27V / 20mA |
|
| SAFETY & EMC
|
Safety Regulations: | UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved |
||||
| Withstand Voltage: | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||
| Isolation resistance: | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC emission: | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B |
|||||
| OTHER | Size: | 23*100*92mmm | ||||
| Weight: | 150g / pcs | |||||
| Packaging: | 72PCS/CTN | |||||
