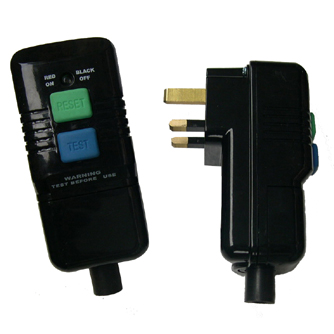

RCD03B-10mA
For Application Advice
Please Call
Please Call
- 01684 566163
1.RCD03B is applicable to electrical appliance of UK, Singapore and Malaysia
2.Reduce the risk of electric shock
3.Use with mowers, strimmers and other portable tools
4.Plugs in to a standard 13-AMP socket
5.Portable – can be moved between socket outlets
6.Users can assemble cable by themselves.
7.Separates test and reset buttons, and manual reset
8.Mechanical flag to indicate contact position
9.Robust Case
10.CE approved
11.RoHS2.0 approved
Main Technical Specifications |
||
l Rated Voltage: |
240VAC~/50Hz |
|
lMax. Load Current: |
13A |
|
lRated trip Current: |
10mA |
|
lLeakage no tripping Current: |
5mA |
|
lMax Tripping Time: |
40mS |
|
l Work Environment Temperature: |
-25°C~+40°C |
|
l Protection Class: |
IP20 |
|
lNon-Latching Operation |
||
l Flexible Cord |
H05RN3G1.0; H05VVF-3G1.0/1.5;H05RR3G1.5 |
|
lStandard: |
BS7071, BS1363 |
|
lUnit Size: |
123*49*57mm |
|
Packing Details |
||
l Packing: |
White box |
|
l Meas.: |
45cm×26cm×30cm (50PCS/CTN) |
|
l N.W.: |
9KG |
|
l G.W. |
10KG |
|
Certification:CE-LVD,RoHS2.0 |
||
