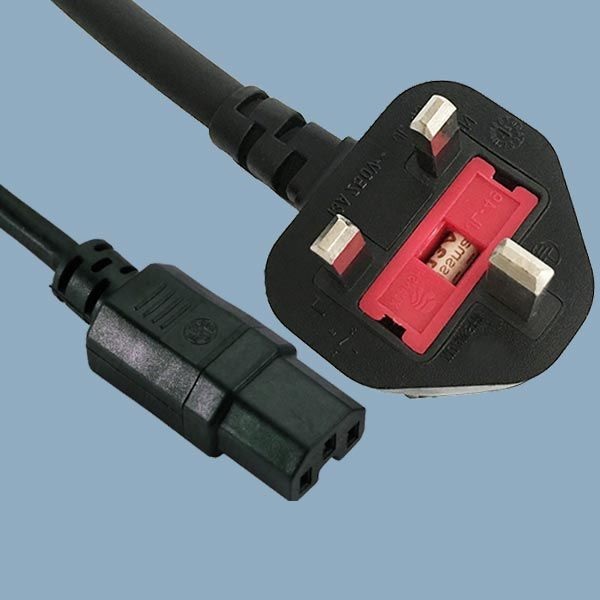

PC13/41 – BS1363A to IEC C15

UK Moulded Plug to IEC 60320 C15 Power Cord

UK BS 1363A Plug to IEC 60320 C15 connector Power Cord

Approved by UK ASTA, Europe VDE

These connectors work at a temperature rating of 120°C for applications such as electric kettle and computer networking

RoHS / REACH compliant

Category: UK Plug Types

Specification
Male Plug	BS 1363(A) Fused Plug
Female Receptacle	IEC 60320 C15
Amperage	Up to 10A
Voltage	Up to 250VAC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Colour	Standard Black or White. Custom colours available
Cable Length	Custom lengths available
Certifications	BSI/VDE
Environmental Certifications	RoHS, REACH
Testing	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Wire Styles
Cord Type	Electrical Rating (Amps/Volts)
H05VV-F 3G x 0.75-1.5mm2	3~16/250
H03RT-F 3G x 0.75-1.0mm2
H05RR-F 3G x 0.75-1.5mm2
H05RN-F 3G x 0.75-1.0mm2
