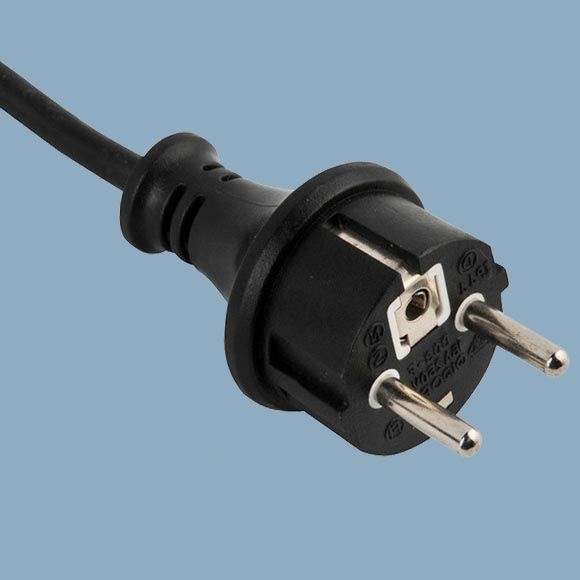

PC06 – CEE 7/7 Schuko IP44 16A

European Schuko IP44 Straight Plug Power Cord

CEE 7/7 Schuko 3 Conductor IP44 waterproof plug power cord

VDE certification

Rated up to 16A 250V

Built to DIN EN 60320-1(VDE 0625-1):2008-05; EN 60320-1:2001+A1:2007 standards

Designed for European outdoor power supply cord applications

All of our European AC power cords are fully moulded with ergonomic design

RoHS / REACH compliant

Category: European Plug Types

Specification
Connector Standard	CEE7/7 IP44 Plug
Maximum Current rating	16A
Maximum Voltage	250VAC
Number of Poles and Wires	2 poles, 3 wires
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Colour	Standard Black or White. Custom colours available
Cable Length	Custom lengths available
Temperature Rating	-60 deg.C ~ 90 deg.C
Certifications	Europe VDE, KEMA, OVE, N, S, FI, D & CEBECc
Environmental Certifications	RoHS, REACH
Testing	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout), and Continuity

Available Wire Styles
Cord Type	Electrical Rating (Amps/Volts)
H03VV-F 3G 0.5 mm² (max. 2m)	2.5~16/250
H03VV-F 3G 0.75 mm²
H05VV-F 3G 0.75 mm²
H05VV-F 3G 1.0 mm² & 1.5 mm²
H05RR-F 3G 0.75 mm²
H05RR-F 3G 1.0 mm² & 1.5 mm²
H05RN-F 3G 0.75 mm²
H05RN-F 3G 1.0 mm²
H07RN-F 3G 1.0 mm² & 1.5 mm²
H03RT-H 3G 0.75 mm²
H03RT-H 3G 1.0 mm²
H05V2V2-F 3G 0.75 mm²
H05V2V2-F 3G 1.0 mm

CEE 7/7 IP44 German Plug Drawing
