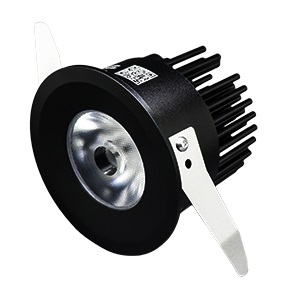

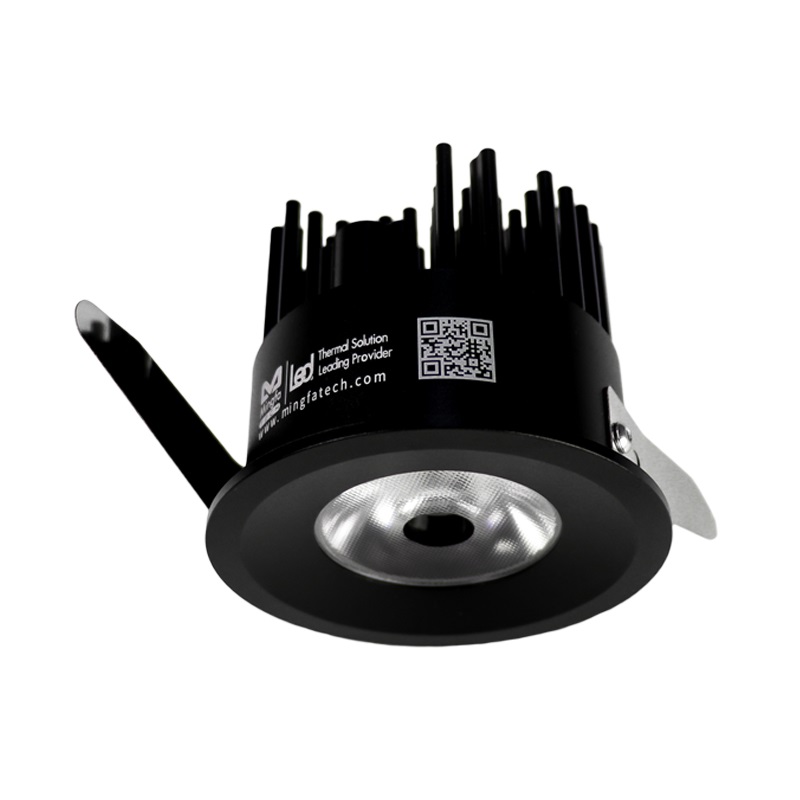

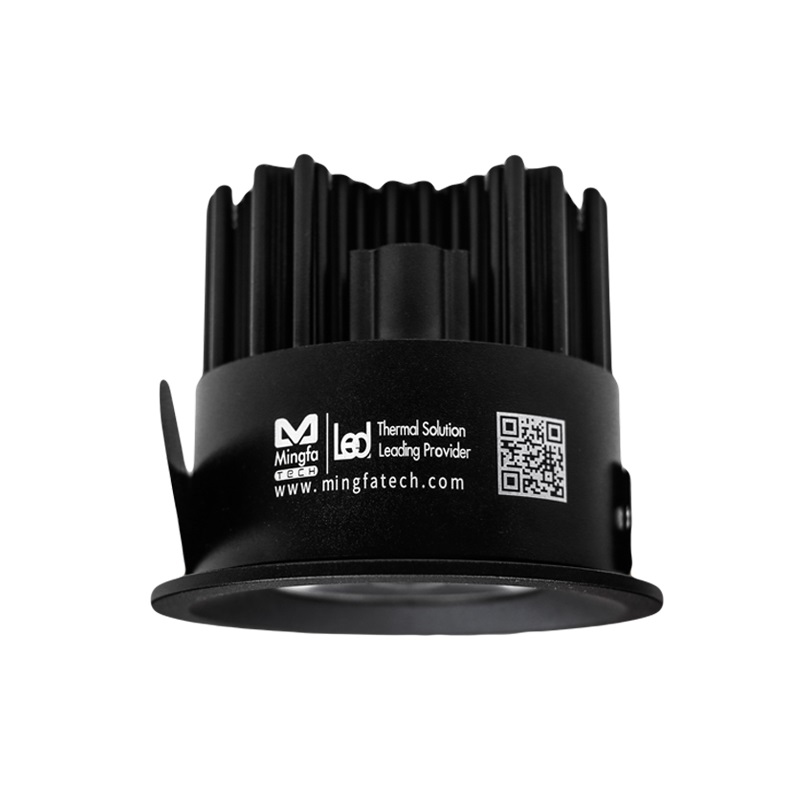

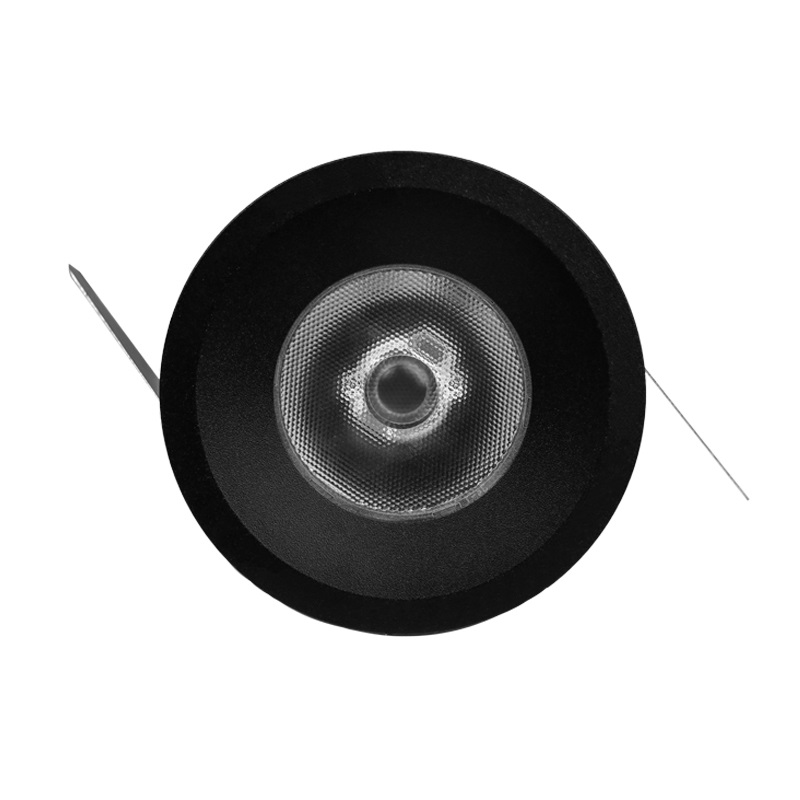

Lighting kits Meng-8055/8065
Designed for Spotlights 500~1700lm
Rth 2.75 ~2.78 °C/W
Suitable for 10~20W COB
Aluminum purity up to 99.8%

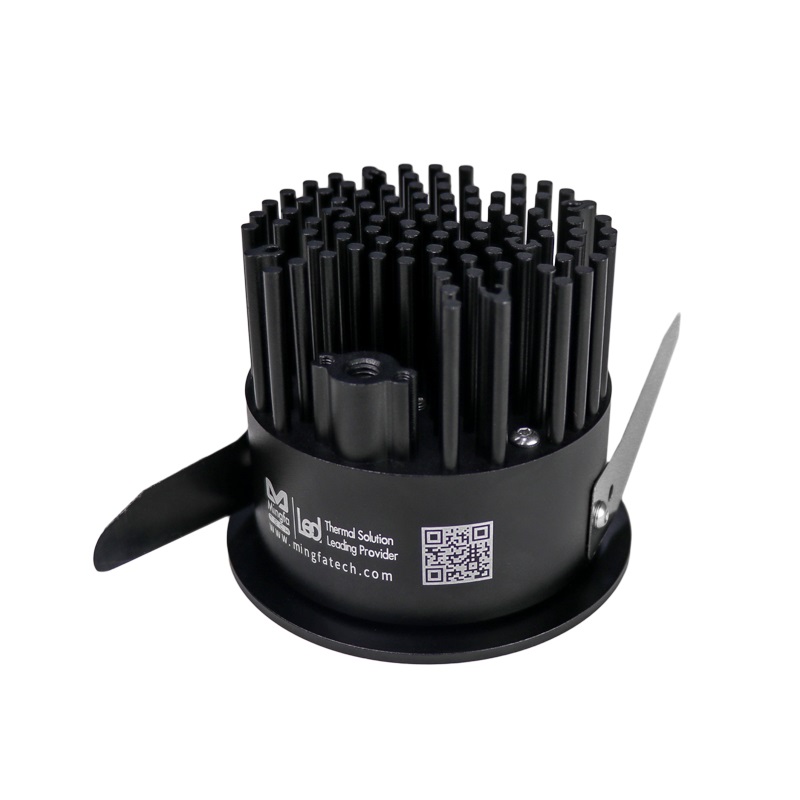

High-Efficiency Cold Forging Heatsink
15° spotlight ~ 60° floodlight Multi-angle selection
| Series | Meng-8055/8065 | |
| Heatsink Material | AL1070 | |
| Heatsink Finish | Black anodized | |
| Certification | CE, ROHS, WEEE | |
| Model No. | Meng-8055-B-xx | Meng-8065-B-xx |
| Heatsink Size | Φ80×55.0mm | Φ80×65.0mm |
| Cut out | Φ72.0-Φ75.0mm | Φ72.0-Φ75.0mm |
| Max. Lumen | 1700 lm | 1700 lm |
| Matching Lens (HercuLux Optics) | HK-50@14-XX-D6-20-1g-1 | HK-45@24-XX-D6-20-1g-1 |
| Lamp Power (Ths-amb,40°C) | 15.0 W | 15.5 W |
| Thermal Resistance Rth（°C/W) | 2.78 °C/W | 2.75 °C/W |
| Weight (g) | 195.0g | 230.0g |
| Beam Angle | 15°/ 24°/ 36°/ 60° | 10°/ 24°/ 34°/ 60° |
| Modular Types | COB | |
| For Environments | Indoor area | |
| For Lightings | Ceiling Spotlights | |
| For Application | Retail & Hospitality, Mall & Food, Architectural & Museums, Office & Education, Industrial & Warehouse, Station & Airport | |
| For LED brands | Bridgelux, Citizen, Cree, Edison, ECO, LG Innotek, LEDiL, Luminus, LumiLEDS, Lumens, Nichia, Prolight Opto, Samsung, Seoul | |
