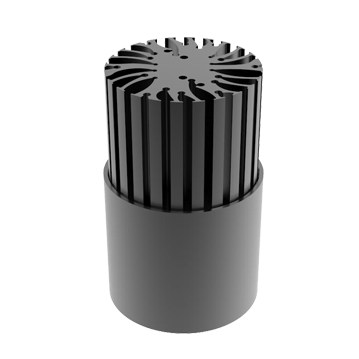

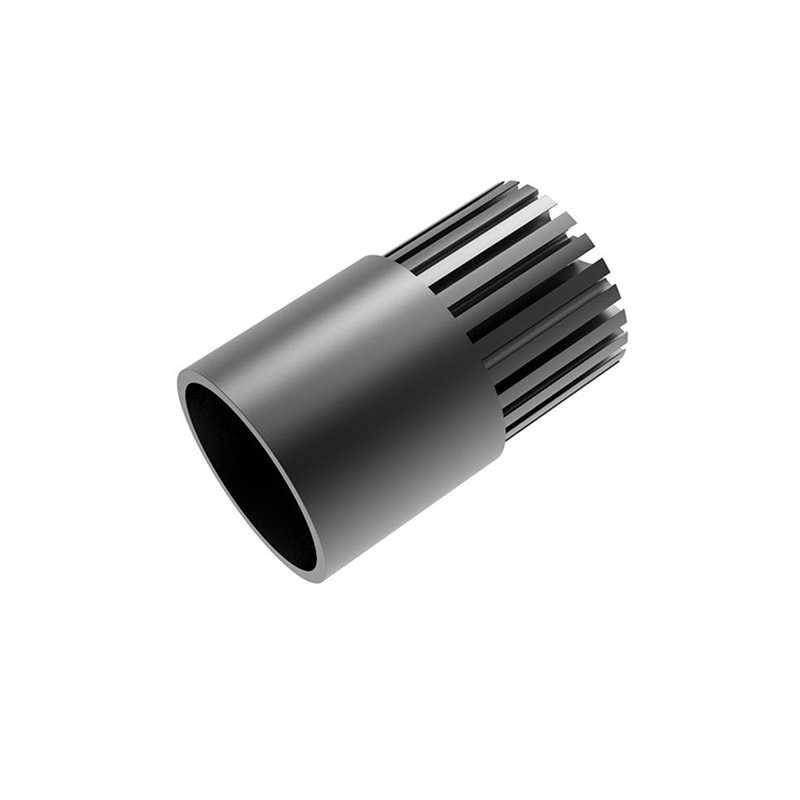

LED light accessory Heat Sink ø50mm x 30mm/50mm
Designed for Spotlight and Downlight 700~1600lm
Rth 5.0~6.8°C/W
Suitable for 5~15W COB
Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules
Standard finish – Black anodized
| Series | BuLED-E | |
| Manufacturing Technology | Aluminum extrusion | |
| Material | AL1070 + AL6063-T5 | |
| Colour & Finish | Black Anodized | |
| Certification | CE, ROHS, WEEE | |
| Diameter (mm) | Φ50 | |
| Height (mm) | 30 | 50 |
| Item Number | BuLED-30E | BuLED-50E |
| Max. Lumen | 1200 lm | 1600 lm |
| Dissipated Power (Ths-amb,50°C) | 8.8 W | 12.0 W |
| Thermal Resistance Rth (°C/W) | 6.3°C/W | 4.8°C/W |
| Cooling Surface Area (mm²) | 38320 mm² | 52610 mm² |
| Net Weight (g) | 106.0 g | 155.0 g |
| Quantity (pcs/CTN) | 100 pcs | 75 pcs |
| Modular Types | COB | COB |
| For Environments | Indoor area | |
| For Lightings | Spot lights, Down lights | |
| For Application | Retail & Hospitality, Mall & Food, Architectural & Museums, Office & Education, Station & Airport, Healthcare | |
| For LED brands | Adura, Bridgelux, BJB, Citizen, Cree, Edison, GE, LG, Lumileds, Lumens, Luminus, Ledil, Nichia, Osram, Philips, Prolight Opto, Samsung, Seoul, Sharp, Tridonic, Vossloh Schwabe, Xicato, Zhaga | |
