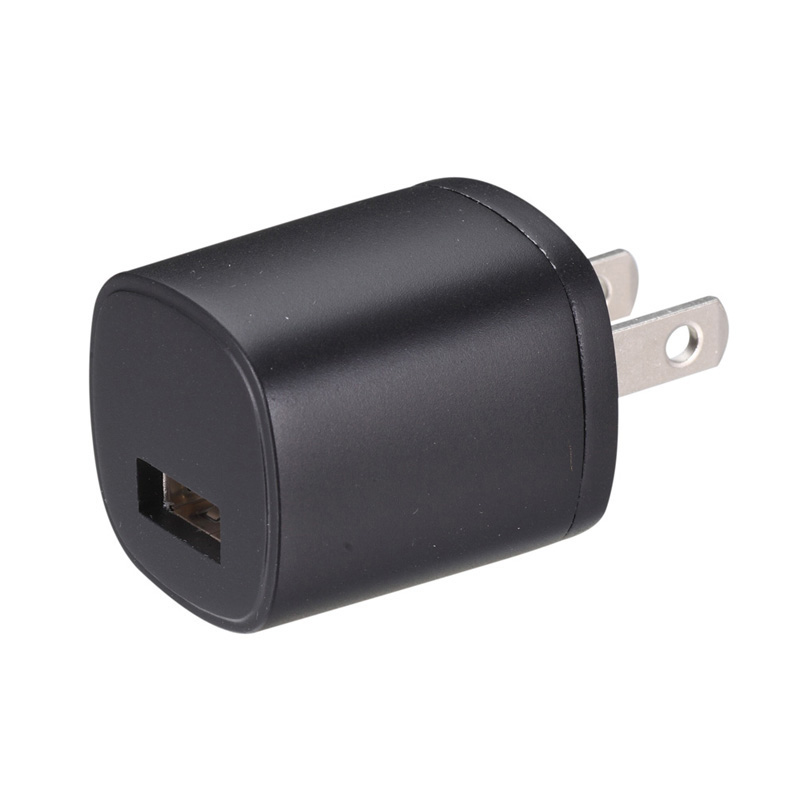

6W Wall Mount Type YS5MC-U
6W Wall Mount Type YS5MC-U
Rated Power: 1-6W
Input: 100-240VAC, 50/60Hz
Standby Power: ≤0.075W
Efficiency Level: COCV5
Protection: Short Circuit, OCP, OVP
Output: 5V
For Application Advice
Please Call
Please Call
- 01684 566163
| Model： | YS5MC-U |
| Power: | 6 max. |
| Input： | 100-240VAC 50/60Hz |
| Output Voltage: | 3-36V |
| Output Current: | 0.01-1.2A |
| Input current: | 0.2A max. |
| Inrush Current: | 65 Amps max. at 100VAC/60Hz, full load |
| Leakage Current: | 25mA Max. at 120VAC input |
| Energy Efficiency Level VI : | |
| No Load Power Consumption ： | ＜0.15W |
| Protections： | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP)： | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity： | 5%-90% RH non-condensing |
| Storage TEMP., Humidity and altitude: | -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input Plug: | US type |
| Certificates and approvals: | UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH |
| EMI EMISSION: | Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test: EN 61000-3-2 Flicker Test: EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test: EN 61000-4-2 RS Test: EN 61000-4-3 EFT Test: EN 61000-4-4 Surge Test: EN 61000-4-5 CS Test: EN 61000-4-6 DIP Test: EN 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25℃ ambient |
| Life: | 3-5 years alternative |
| Dimension: | US: 30x30x34mm |
| Weight: | US: 25g |
| Packing: | 200PCS/CTN, 75x30x45cm |
| Model: | YS6MC-0501200 |
| DC Voltage: | 5V |
| Rated Current: | 1.2A |
| Current Range: | 0.01-1.2A |
| Rated Power: | 6W |
| Ripple & Noise(max.): | 50mVp-p |
| Voltage Tolerance: | ±5% |
| Line Regulation: | ±3% |
| Load Regulation: | ±5% |
| Efficiency: | 70% |
| Setup, Rise, Hold up time: | 3 second max./40 MS max./5 MS max. at 100VAC input and output max. load. |
