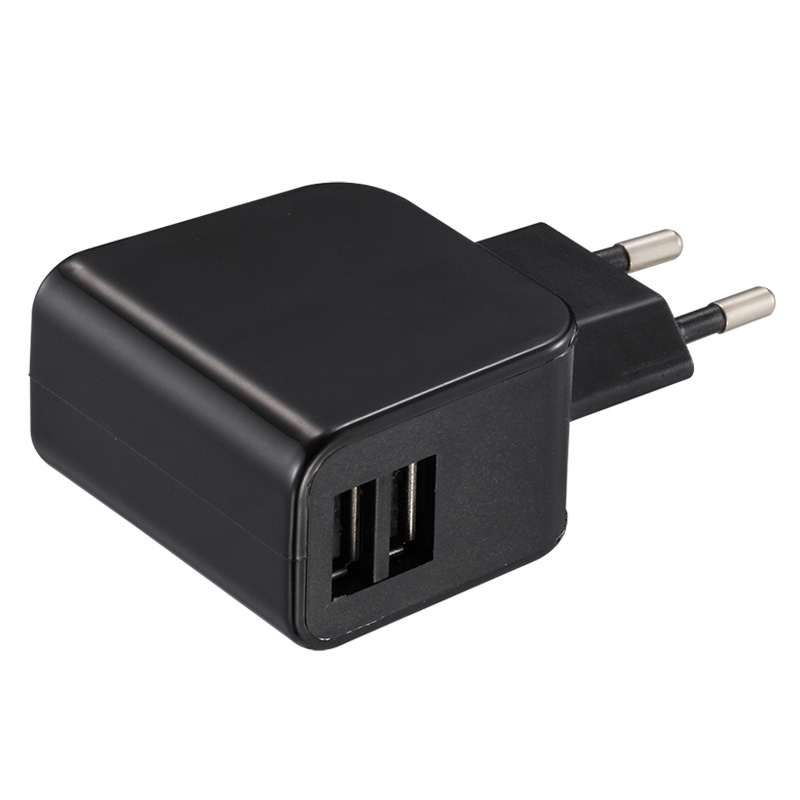

15.5W Wall Mount Type YS17-E

Rated Power: 6-16W
Input: 100-240VAC, 50/60Hz
Standby Power: ≤0.075W
Efficiency Level: COCV5
Protection: Short Circuit, OCP, OVP
Output: 5V

Category: USB Charger Type

Model：	YS17-E
Power:	15.5W max.
Input：	100-240VAC 50/60Hz
Output Voltage:	0.1-5V
Output Current:	0.01-3.1A
Input current:	0.2A max.
Inrush Current:	65 Amps max. at 230VAC/50Hz, full load
Leakage Current:	25mA Max. at 264VAC input
Energy Efficiency Level VI :
No Load Power Consumption ：	＜0.15W
Protections：	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP)：	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity：	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:	EU type
Certificates and approvals:	UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION:	Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test: EN 61000-3-2 Flicker Test: EN 61000-3-3
EMS IMMUNITY:	ESD Test: EN 61000-4-2 RS Test: EN 61000-4-3 EFT Test: EN 61000-4-4 Surge Test: EN 61000-4-5 CS Test: EN 61000-4-6 DIP Test: EN 61000-4-11
MTBF:	100000 hours minimum at full load at 25℃ ambient
Life:	3-5 years alternative
Dimension:	64.550.528.5mm
Weight:	90g
Packing:	100PCS/CTN, 36.516.523cm

Model:	YS17-0502100	YS17-0503100
DC Voltage:	5V	5V
Rated Current:	2.1A	3.1A
Current Range:	0.01-2.1A	0.01-3.1A
Rated Power:	10.5W	15.5W
Ripple & Noise(max.):	80mVp-p	80mVp-p
Voltage Tolerance:	±5%	±5%
Line Regulation:	±3%	±3%
Load Regulation:	±5%	±5%
Efficiency:	71%	71%
Setup, Rise, Hold up time:	3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.
