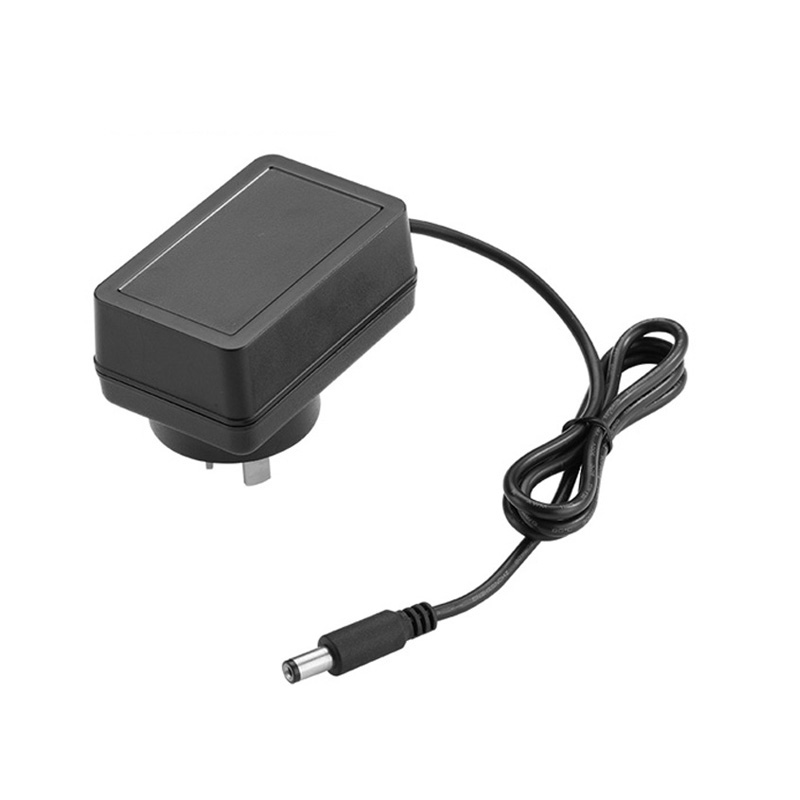

18W Wall Mount Type YS16
18W Wall Mount Type YS16
Rated Power: 18W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.1W
Efficiency Level: DOE VI / COCV5
Protection: Short Circuit, OCP, OVP
Output: 5-36V
Rated Power: 18W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.1W
Efficiency Level: DOE VI / COCV5
Protection: Short Circuit, OCP, OVP
Output: 5-36V
Battery charger | NI-MH battery charger |
Model: | YS16U |
Rated Power: | 18W max. |
Input: | 100-240VAC 50/60Hz |
Output Voltage: | 6V /9V /12V /13.5V/ 15V /16.5V /18V |
Output Current: | 0.1-2A Constant Current |
Input current: | 0.6A max. |
Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
Leakage Current: | 0.25mA Max. at 264VAC input |
No Load Power Consumption : | <0.3W |
Protections: | Short Circuit /Over Current /Over Voltage |
Short Circuit Protection (SCP): | Protection to Zero Voltage |
Over Voltage Protection (OVP): | ≤Vout*150% |
Over Current Protection (OCP): | ≤Iout*150% |
Working TEMP.: | ‘-20-50°C |
Working Humidity: | 5%-90% RH non-condensing |
Storage TEMP.,Humidity and altitude: | ,-40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
Input plug | EU,UK,US ,AU plug option |
Certificates and approvals: | CE,EMC,RoHS,REACH |
LVD | EN 60335-1 /EN60335-2-29 |
EMI EMISSION: | EN55014-1/EN55014-2 EN61000-3-2 EN61000-3-3 |
MTBF: | 100000 hours minimum at full load at 25 C ambient |
Dimension: | 70*45*30mm |
Weight: | 120g |
Packing: | 100PCS/CTN, 45*28.5*31cm |
