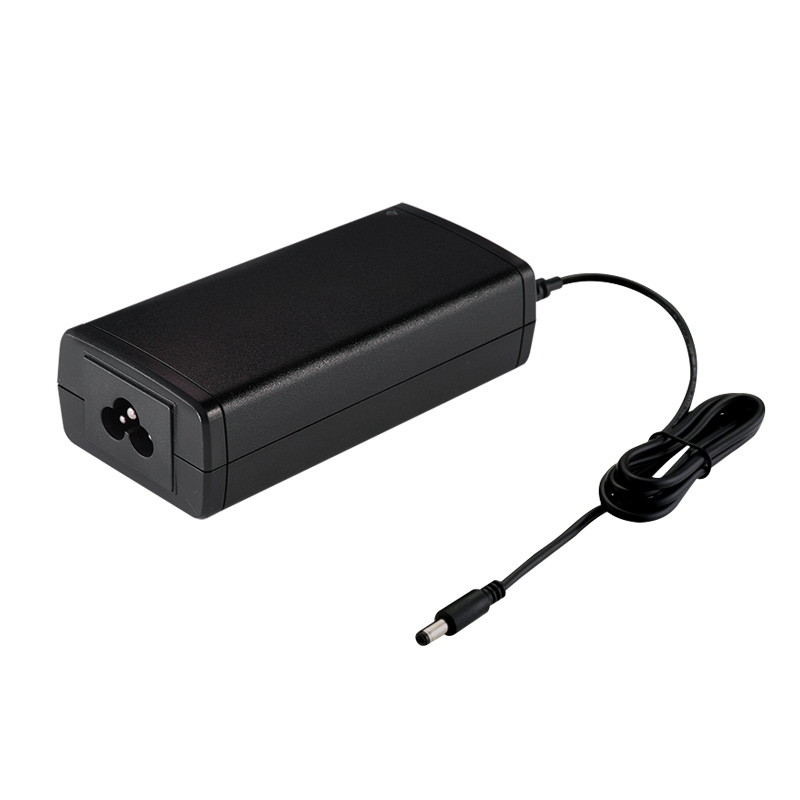

65W Desktop Type YS50
65W Desktop Type YS50
Rated Power: 65W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.21W
Efficiency Level: DOE VI / COCV5
Protection: Short Circuit, OCP, OVP, OTP
Output: 5-48V
For Application Advice
Please Call
Please Call
- 01684 566163
| Model： | YS50 |
| Power: | 65W max. |
| Input： | 100-240VAC 50/60Hz |
| Output Voltage: | 16.8-54.6V |
| Output Current: | 1-3.5A |
| Input current: | 1.5A max. |
| Inrush Current: | 65Amps max. at 240VAC/50Hz,full load |
| Leakage Current: | ＜0.25mA/240VAC |
| No Load Power Consumption ： | ＜1.0W |
| Protections： | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP)： | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity： | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input Plug: | Multiple Options |
| Certificates and approvals: | UL,CUL,CB,FCC,CE,RoHS |
| Safety standards | UL62368-1，UL1012，EN62368-1，EN60335-1，EN60335-2-29(except for 55.2V) approved |
| EMC standards | EN55032 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3 |
| MTBF: | 100000 hours minimum at full load at 25℃ ambient |
| Life: | 3-5 years alternative |
| Dimension: | 115.5*52*32.5mm |
| Weight: | 300g |
| Packing: | 50PCS/CTN |
| Model: | YS50-5461000 | YS50-4201400 | YS50-2942000 | YS50-2102800 | YS50-1683500 |
| DC Voltage: | 54.60V | 42.00V | 29.40V | 21.00V | 16.80V |
| Rated Current: | 1.00A | 1.40A | 2.00A | 2.80A | 3.50A |
| Current Range: | 0-1A | 0-1.4A | 0-2A | 0-2.8A | 0-3.5A |
| Rated Power: | 55.00W | 58.80W | 58.80W | 58.80W | 58.80W |
| Ripple & Noise(max.): | 500mVp-p | 400mVp-p | 294mVp-p | 288mVp-p | 210mVp-p |
| Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% |
