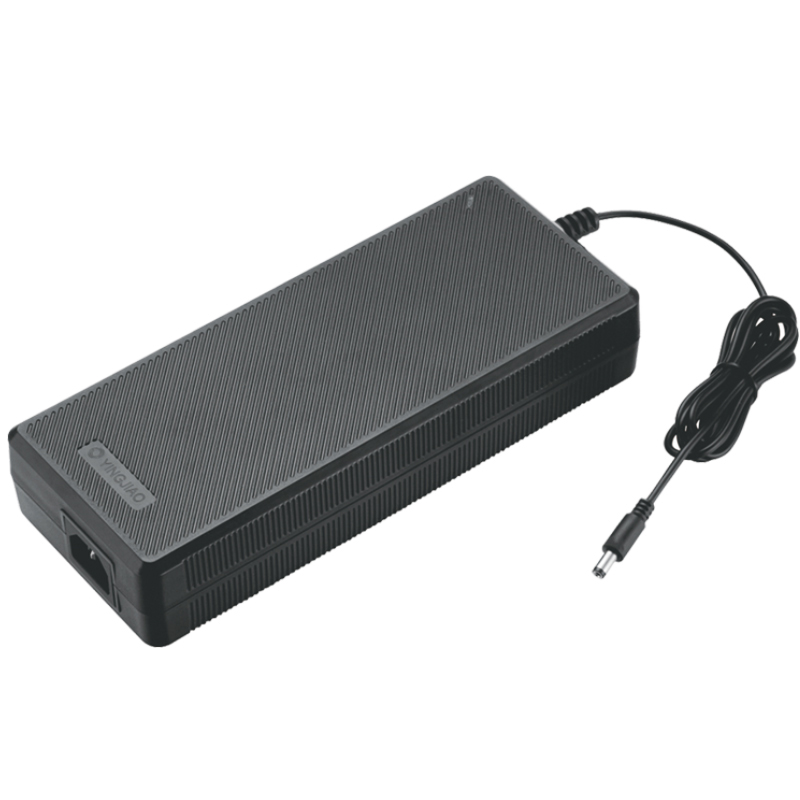

300W Desktop Type YS300
300W Desktop Type YS300
Rated Power: 350W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.5W
Efficiency Level: DOE VI / COCV5
Protection: Short Circuit, OCP, OVP, OTP
Output: 12-48V
Rated Power: 350W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.5W
Efficiency Level: DOE VI / COCV5
Protection: Short Circuit, OCP, OVP, OTP
Output: 12-48V
Model: | YS300 |
Power: | 250W max. |
Input: | 100-240VAC 50/60Hz |
Output Voltage: | 21-67.2V |
Output Current: | 3.6-11.9A |
Input current: | 4A max. |
Inrush Current: | 65Amps max. at 240VAC/50Hz,full load |
Leakage Current: | <1.5mA/240VAC |
No Load Power Consumption : | <1.0W |
Protections: | Short Circuit /Over Current /Over Voltage |
Short Circuit Protection (SCP): | Protection to Zero Voltage |
Over Voltage Protection (OVP): | ≤Vout*150% |
Over Current Protection (OCP): | 110%-180% |
Working TEMP.: | -20°C-50°C |
Working Humidity: | 5%-90% RH non-condensing |
Storage TEMP.,Humidity and altitude: | -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
Input Plug: | Multiple Options |
Certificates and approvals: | UL,CUL,CB,FCC,CE,RoHS |
Safety standards | UL62368-1,UL1012,EN62368-1,EN60335-1,EN60335-2-29(except for 55.2V) approved |
EMC standards | EN55032 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3 |
MTBF: | 100000 hours minimum at full load at 25℃ ambient |
Life: | 3-5 years alternative |
Dimension: | 238*98*47mm |
Weight: | 1,500g |
Packing: | 10PCS/CTN |
Model: | YS300-6720360 | YS300-5460450 | YS300-4200590 | YS300-2940840 | YS300-2101190 |
DC Voltage: | 67.2V | 54.60V | 42.00V | 29.40V | 21.00V |
Rated Current: | 3.6A | 4.50A | 5.90A | 8.40A | 11.90A |
Current Range: | 0-3.6A | 0-4.5A | 0-5.9A | 0-8.4A | 0-11.9A |
Rated Power: | 242.00W | 245.70W | 247.80W | 246.96W | 249.90W |
Ripple & Noise(max.): | 600mVp-p | 500mVp-p | 400mVp-p | 294mVp-p | 210mVp-p |
Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% | ±5% |
Line Regulation: | ±3% | ±3% | ±3% | ±3% | ±3% |
Load Regulation: | ±5% | ±5% | ±5% | ±5% | ±5% |
Setup,Rise,Hold up time: | 3 second max./40 MS max./5 MS max. at 100VAC input and output max. load. |
