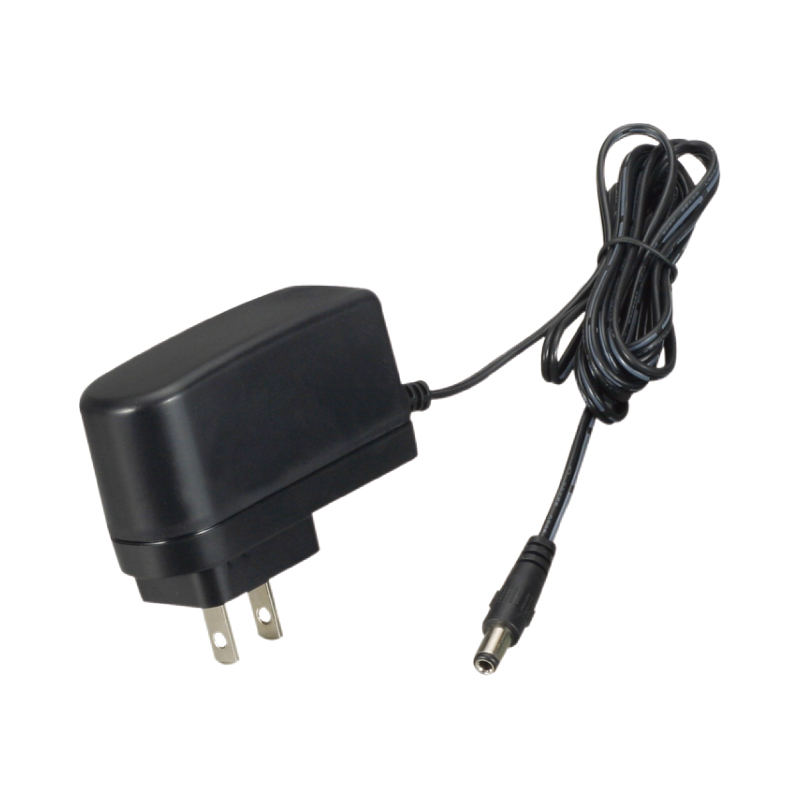

12W Wall Mount Type YS12
12W Wall Mount Type YS12
Rated Power: 12W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.1W
Efficiency Level: DOE VI
Protection: Short Circuit, OCP, OVP, OTP
Output: 5-36V
For Application Advice
Please Call
Please Call
- 01684 566163
| Battery charger | Lithium battery charger |
| Model： | YS12U |
| Rated Power: | 12W max. |
| Input： | 100-240VAC 50/60Hz |
| Output Voltage: | 4.2V/ 8.4V / 12.6V |
| Output Current: | 0.1-2A Constant Current |
| Input current: | 0.5A max. |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 0.25mA Max. at 264VAC input |
| No Load Power Consumption ： | ＜0.3W |
| Protections： | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP)： | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | ≤Iout*150% |
| Working TEMP.: | ‘-20-50°C |
| Working Humidity： | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | ,-40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input plug | EU,UK,US ,AU plug option |
| Certificates and approvals: | CE,EMC,RoHS,REACH |
| LVD | EN 60335-1 /EN60335-2-29 |
| EMI EMISSION: | EN55014-1/EN55014-2 EN61000-3-2 EN61000-3-3 |
| MTBF: | 100000 hours minimum at full load at 25 C ambient |
| Dimension: | 69*27*38mm |
| Weight: | 76g |
| Packing: | 100PCS/CTN, 45*28.5*31cm |
| Model: | YS12-0422000 | YS12-1500800 | YS12-1260800 |
| DC Voltage: | 4.2V | 8.4V | 12.6V |
| Rated Current: | 2000mA | 1000mA | 800mA |
| Current Range: | 100-2000mA | 100-1000mA | 100-800mA |
| Rated Power: | 8.4W | 8.4W | 10W |
| Voltage Range: | ±5% | ||
| Line Regulation: | ±3% | ||
| LED indicator | Red is charging ,Green is idle and full charged. There will be a continous float charging current 150mA after full charged . |
||
| Setup,Rise,Hold up time: | 1000ms,50ms,16ms at full load | ||
