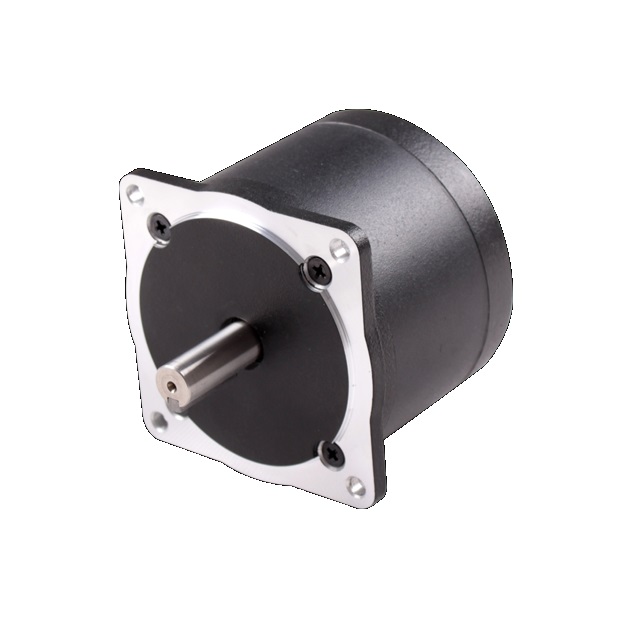

NEMA34(86mm) 1.8° FL86ST Series
For Application Advice
Please Call
Please Call
- 01684 566163
- Micro HB stepper motor
- Step Angle: 1.8°
- Frame Size: NEMA34 (86x86mm)
- Round Body
- Body Length: 67 ~ 125mm
- Feature summary:
- Very High Torque
- Low Inertia
- Low Noise
- High Efficiency
Accessories：
| P/N | Frame Size | Phase | Shaft Type | Body Length (mm) | Holding Torque (Nm) | Rated Current (A) |
| FL86ST125-3508AH | NEMA34(86mm) | 4 | Single | 125±1 | 7.6 | 3.5 |
| FL86ST94-2808AH | NEMA34(86mm) | 4 | Single | 94±1 | 4.8 | 2.8 |
| FL86ST67-2808AH | NEMA34(86mm) | 4 | Single | 67±1 | 2.8 | 2.8 |
Full specification available on request
