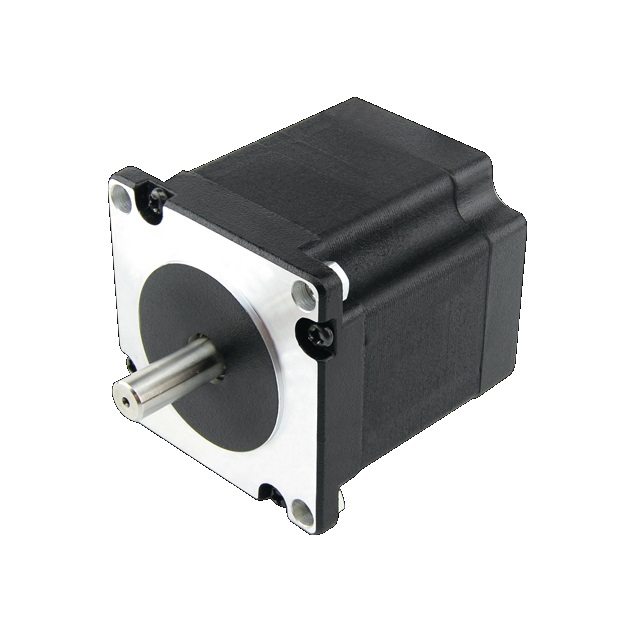

NEMA23(57mm) 1.8° FL57STH Series
For Application Advice
Please Call
Please Call
- 01684 566163
- Micro HB stepper motor
- Step Angle: 1.8°
- Frame Size: NEMA23 (57x57mm)
- Body Length: 40 ~ 115mm
- Winding Type: Unipolar/Bipolar
- Feature summary:
- High Torque
- Low Inertia
- Low Noise
- Long Life
- Low Losses
- Small Size
- High Efficiency
Accessories：
| P/N | Frame Size | Phase | Shaft Type | Body Length (mm) | Holding Torque (Nm) | Rated Current (A) |
| FL57STH41-2006A | NEMA23(57mm) | 2 | Single Shaft | 40 | 0.39 | 2 |
| FL57STH41-2804A | NEMA23(57mm) | 2 | Single Shaft | 40 | 0.55 | 2.8 |
| FL57STH51-2006A | NEMA23(57mm) | 2 | Single Shaft | 50 | 0.72 | 2 |
| FL57STH51-2804A | NEMA23(57mm) | 2 | Single Shaft | 50 | 1 | 2.8 |
| FL57STH56-2006A | NEMA23(57mm) | 2 | Single Shaft | 55 | 0.9 | 2 |
| FL57STH56-2804A | NEMA23(57mm) | 2 | Single Shaft | 55 | 1.26 | 2.8 |
| FL57STH76-2006A | NEMA23(57mm) | 2 | Single Shaft | 75 | 1.35 | 2 |
| FL57STH115-2804A | NEMA23(57mm) | 2 | Single Shaft | 115 | 3 | 2.8 |
| FL57STH76-2804A | NEMA23(57mm) | 2 | Single Shaft | 75 | 1.89 | 2.8 |
Full specification available on request
