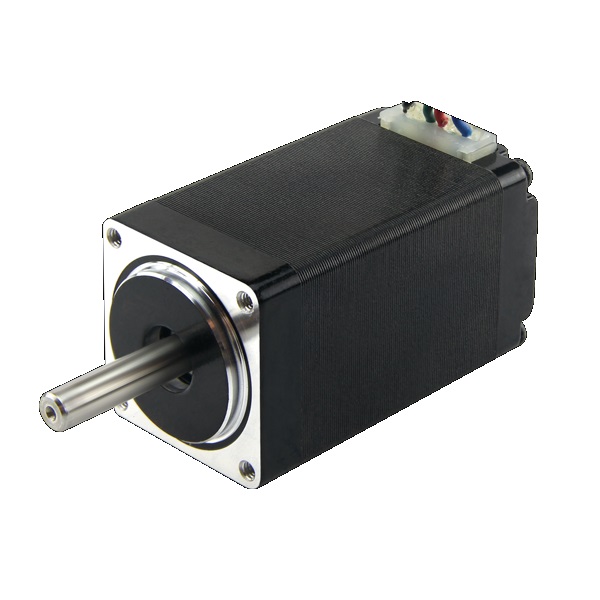

NEMA11(28mm) 1.8° FL28STH Series
For Application Advice
Please Call
Please Call
- 01684 566163
- Micro HB stepper motor
- Step Angle: 1.8°
- Frame Size: NEMA11 (28x28mm)
- Body Length: 32mm ~ 51mm
- Winding Type: Unipolar/Bipolar
- Feature summary:
- Low Inertia
- Low Noise
- High Torque
Accessories：
| P/N | Frame Size | Phase | Shaft Type | Body Length (mm) | Holding Torque (Nm) | Rated Current (A) |
| FL28STH51-0956A | NEMA11(28mm) | 2 | Single Shaft | 51 | 0.09 | 0.95 |
| FL28STH51-0674A | NEMA11(28mm) | 2 | Single Shaft | 51 | 0.12 | 0.67 |
| FL28STH45-0956A | NEMA11(28mm) | 2 | Single Shaft | 45 | 0.075 | 0.95 |
| FL28STH45-0674A | NEMA11(28mm) | 2 | Single Shaft | 45 | 0.095 | 0.67 |
| FL28STH32-0956A | NEMA11(28mm) | 2 | Single Shaft | 32 | 0.043 | 0.95 |
| FL28STH32-0674A | NEMA11(28mm) | 2 | Single Shaft | 32 | 0.06 | 0.67 |
Full specification available on request
