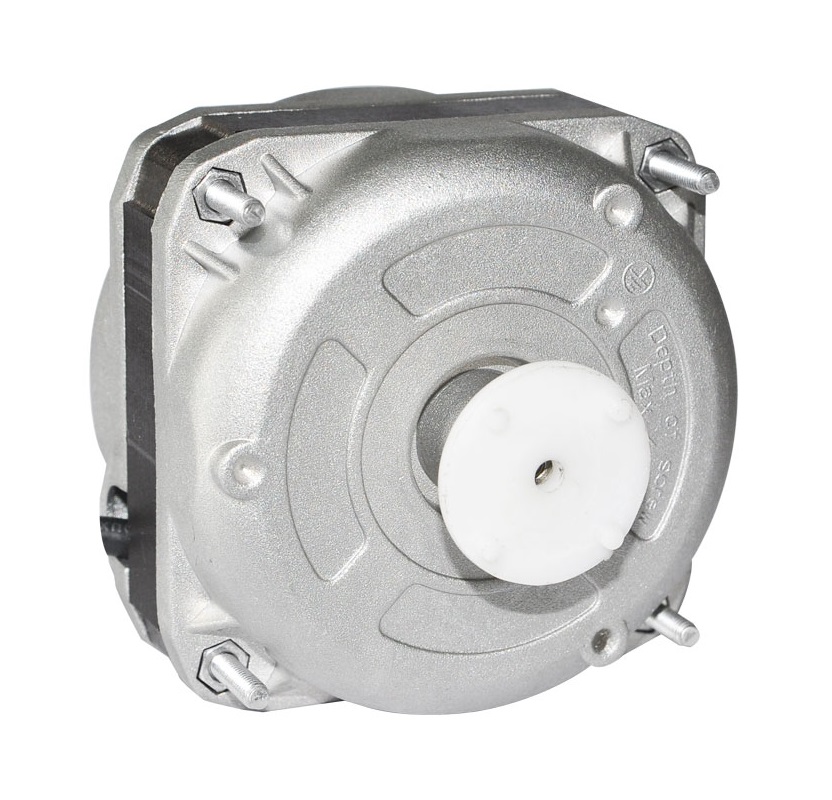

YZ18-N Series
For Application Advice
Please Call
Please Call
- 01684 566163
- Operating type: S1
- Insulation class: Grade B
- Ambient temperature: -40°C 〜60°C
- Protection class: IP42
| TYPE | YZ5-13-18 | YZ10-20-18 | YZ16-25-18 | YZ18-30-18 | YZ25-40-18 | YZ34-45-18 | ||||||
| VOLTAGE (V) | 220-240 | 110-120 | 220-240 | 110-120 | 220-240 | 110-120 | 220-240 | 110-120 | 220-240 | 110-120 | 220-240 | 110-120 |
| FREQUENCY (Hz) | 50/60 | 60 | 50/60 | 60 | 50/60 | 60 | 50/60 | 60 | 50/60 | 60 | 50/60 | 60 |
| RATED INPUT (W) | 33 | 33 | 38 | 55 | 70 | 70 | 73 | 75 | 95 | 100 | 120 | 110 |
| OUTPUT (W) | 5 | 5 | 10 | 10 | 16 | 16 | 18 | 18 | 25 | 25 | 34 | 34 |
| RATED CURRENT (A) | 0.21 | 0.55 | 0.25 | 0.8 | 0.45 | 1.01 | 0.5 | 1.1 | 0.7 | 1.4 | 0.85 | 1.5 |
| RATED SPEED (rpm) | 1300 | 1550 | 1300 | 1550 | 1300 | 1550 | 1300 | 1450 | 1300 | 1450 | 1300 | 1450 |
| FAN BLADE Dia. (mm) | 200 | 230 | 250 | 250 | 300 | 300 | ||||||
| BRACKET (mm) | H72 | H84 | H84 | H109-1 | H109-1 | H109-1 | ||||||
| WEIGHT (kg) | 0.8 | 1.1 | 1.4 | 1.5 | 1.8 | 2 | ||||||
| QTY/CTN (pcs) | 24 | 24 | 12 | 12 | 12 | 12 | ||||||
| A (mm) | 13 | 19 | 25 | 30 | 40 | 45 | ||||||
| B (mm) | 17 | 17 | 23 | 24 | 25 | 29 | ||||||
| C (mm) | 44 | 44 | 50 | 51 | 52 | 56 | ||||||
| D (mm) | 76 | 83 | 94 | 100 | 111 | 120 | ||||||
| APPROVALS | CE, VDE, CCC | CE, VDE, CCC | CE, VDE, CCC | CE, VDE, CCC | CE, VDE, CCC | CE, VDE, CCC | ||||||
Full specification available on request
