Q Frame

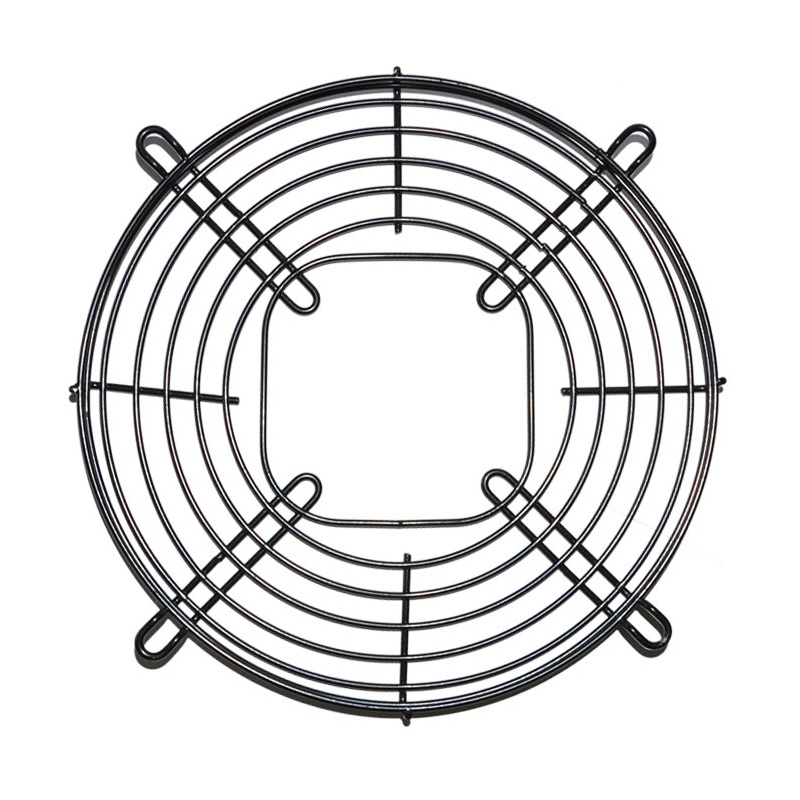

Grilles
Grilles
Grilles
Refrigeration Fan Motor Accessory
Category:
Q Frame
Data
Details
Dimension
Impeller Size
A
B
C
H
Ø154
170
202
190
11
Ø172
188
220
208
11
Ø200
214
248
236
25
Ø230
246
278
266
27
Ø254
270
300
290
17
Ø300
324
354
344
17
All dimensions are in mm
