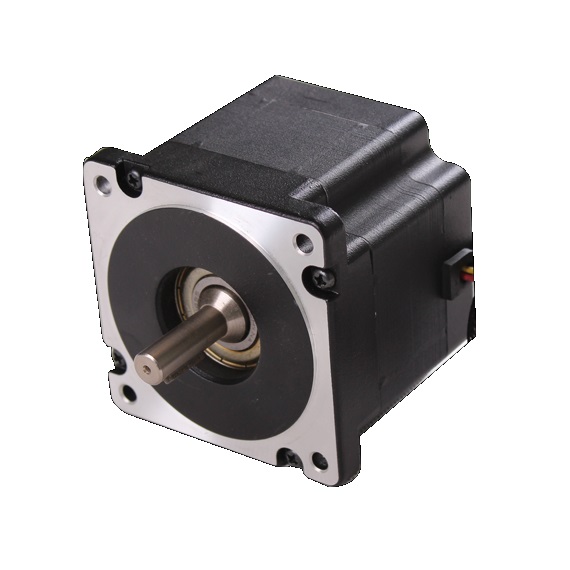

86mm FL86BLD Series
86mm FL86BLD Series
FL86BLD Series
86mm BLDC Motor
For Application Advice
Please Call
Please Call
- 01684 566163
- BLDC Motor
- Frame Size: 86 x 86mm
- Optimized Structure
- Power: 140W ~ 800W
- Voltage: 24VDC~48VDC+ (Can be Customized with Different Voltage)
- Rated Torque: 0.44N.m ~ 2.54N.m
- Feature summary：
- Wide range of speed control and smooth torque output
- Excellent speed stability
- Compact and high power
- High efficiency and energy-saving
Accessories：
| P/N | Frame Size | Rated Power (W) | Body Length (mm) | Rated Voltage (V) | Rated Torque (Nm) | Rated Current (A) | Rated Speed (rpm) |
| FL86BLD134 | 86 | 800 | 134 | 48 | 2.54 | 18.6 | 3000 |
| FL86BLD86 | 86 | 400 | 86 | 48 | 1.27 | 10 | 3000 |
| FL86BLD62 | 86 | 140 | 62 | 48 | 0.44 | 3.6 | 3000 |
Full specification available on request
