86mm FL86BLC Series
86mm FL86BLC Series
FL86BLC Series

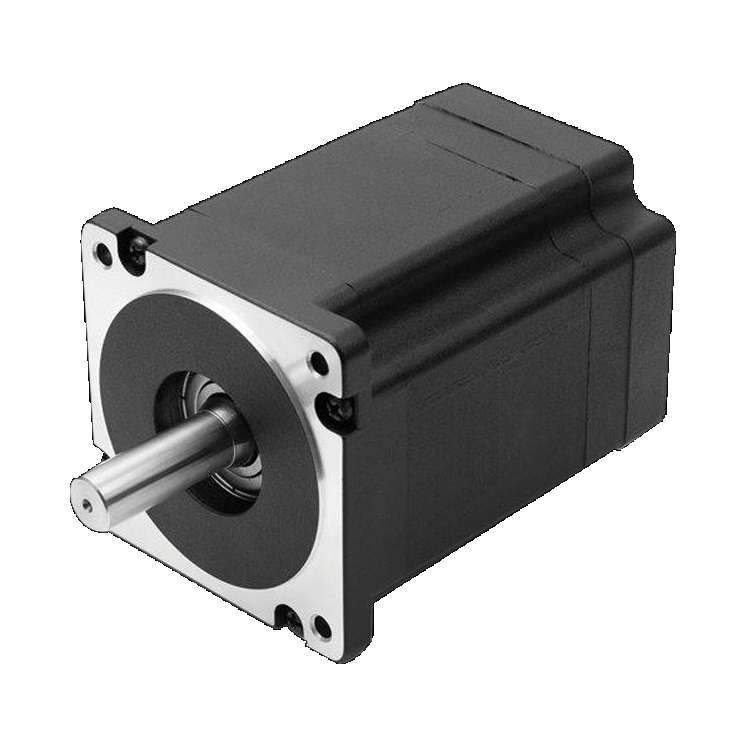

86mm BLDC Motor
For Application Advice
Please Call
Please Call
- 01684 566163
- BLDC Motor
- Frame Size: 86 x 86mm
- Optimized Winding Structure
- Power: 130W ~ 700W
- Voltage: 48VDC
- Rated Torque: 0.4Nm ~ 2.22Nm
- Feature summary：
- Wide range of speed control and smooth torque output
- Excellent speed stability
- Compact and high power
- High efficiency and energy-saving
Accessories：
| P/N | Frame Size | Rated Power (W) | Body Length (mm) | Rated Voltage (V) | Rated Torque (Nm) | Rated Current (A) | Rated Speed (rpm) |
| FL86BLC125 | 86 | 700 | 125 | 48 | 2.22 | 17 | 3000 |
| FL86BLC105 | 86 | 500 | 105 | 48 | 1.6 | 12 | 3000 |
| FL86BLC77 | 86 | 250 | 77 | 48 | 0.8 | 5.6 | 3000 |
| FL86BLC64 | 86 | 130 | 64 | 48 | 0.4 | 3.3 | 3000 |
Full specification available on request
