42mm FL42RBL Series
42mm FL42RBL Series
FL42RBL Series

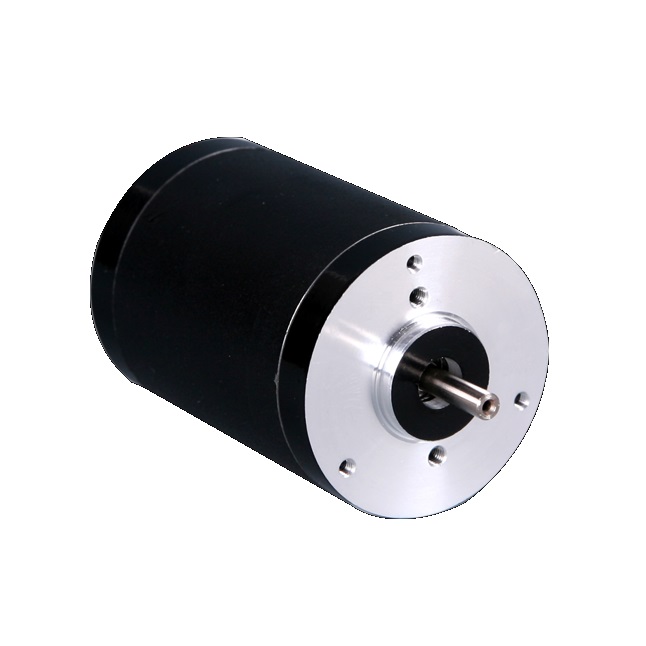

42mm BLDC Motor
For Application Advice
Please Call
Please Call
- 01684 566163
- BLDC Motor
- Frame Size: Ø42mm
- Power: 8.4W ~ 76W
- Voltage: 24VDC ~ 48VDC
- Rated Torque: 20mNm ~ 115mNm
- Feature summary：
- Wide range of speed control and smooth torque output
- Excellent speed stability
- Compact and high power
- High efficiency and energy-saving
ACCESSORIES：
| P/N | Frame Size | Rated Power (W) | Body Length (mm) | Rated Voltage (V) | Rated Torque (Nm) | Rated Current (A) | Rated Speed (rpm) |
| FL42RBL93-24V-6375A-P | 42 | 76 | 93 | 24 | 0.115 | 4 | 6300 |
| FL42RBL85-24V-4060A-P | 42 | 62 | 85 | 24 | 0.15 | 3.5 | 4000 |
| FL42RBL60-24V-4030A-P | 42 | 25 | 60 | 24 | 0.056 | 1.4 | 4200 |
| FL42RBL30-24V-4009A-P | 42 | 8.4 | 30 | 24 | 0.02 | 0.5 | 4000 |
Full specification available on request
