28mm FL28BL Series
28mm FL28BL Series
FL28BL Series

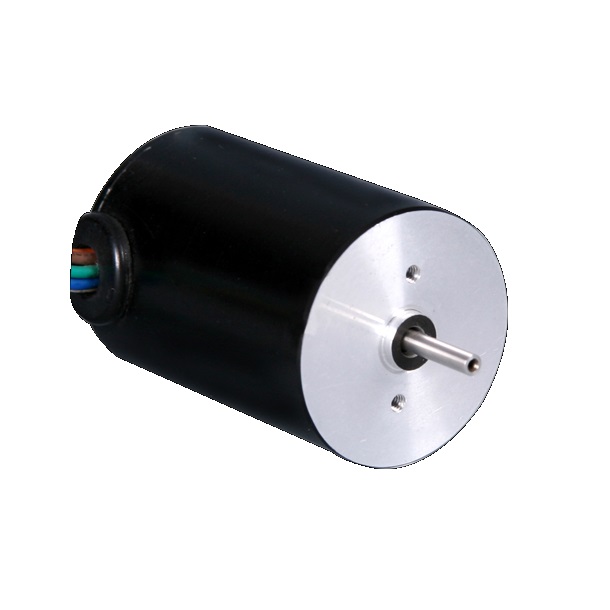

28mm BLDC Motor
For Application Advice
Please Call
Please Call
- 01684 566163
- BLDC Motor
- Frame Size: 28mm
- Power: 4W~ 21W
- Voltage: 15VDC ~ 48VDC
- Rated Torque: 5mNm~50mNm
- Feature summary：
- Wide speed range, flat torque
- Excellent speed stability
- Compact and high power
- High efficiency and energy-saving
ACCESSORIES：
| P/N | Frame Size | Rated Power (W) | Body Length (mm) | Rated Voltage (V) | Rated Torque (Nm) | Rated Current (A) | Rated Speed (rpm) |
| FL28BL77-24V-3116AF | 28 | 21 | 77 | 24 | 0.05 | 1.45 | 4000 |
| FL28BL38 | 28 | 15 | 38 | 24 | 0.014 | 0.9 | 10000 |
| FL28BL28-15V-8006AF | 28 | 4 | 28 | 15 | 0.005 | 0.45 | 8000 |
Full specification available on request
