20mm FL20BLW Series
20mm FL20BLW Series
FL20BLW Series

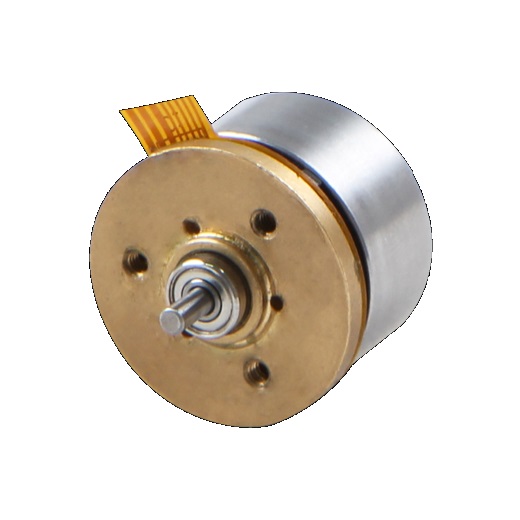

20mm External Rotor Motor
For Application Advice
Please Call
Please Call
- 01684 566163
- Outer Rotor BLDC Motor
- Size: 20mm
- Motor Length: 14mm
- Flat Design
- Rated Power: 5W
- Rated Voltage: 12VDC ~ 24VDC
- Rated Torque: 7.59mNm
- Feature summary：
- Wide range of speed control and smooth torque output
- Excellent speed stability
- Small size, high power
- High efficiency, Low temperature rise
ACCESSORIES：
| P/N | Frame Size | Rated Power (W) | Body Length (mm) | Rated Voltage (V) | Rated Torque (Nm) | Rated Current (A) | Rated Speed (rpm) |
| FL20BLW14-24V-5205A | 20 | 5 | 14 | 24 | 0.007 | 0.2 | 5220 |
| FL20BLW14-12V-5105A | 20 | 5 | 14 | 12 | 7.59 | 0.63 | 5170 |
Full specification available on request
