36mm FL36CBL Series
36mm FL36CBL Series
36mm FL36CBL Series

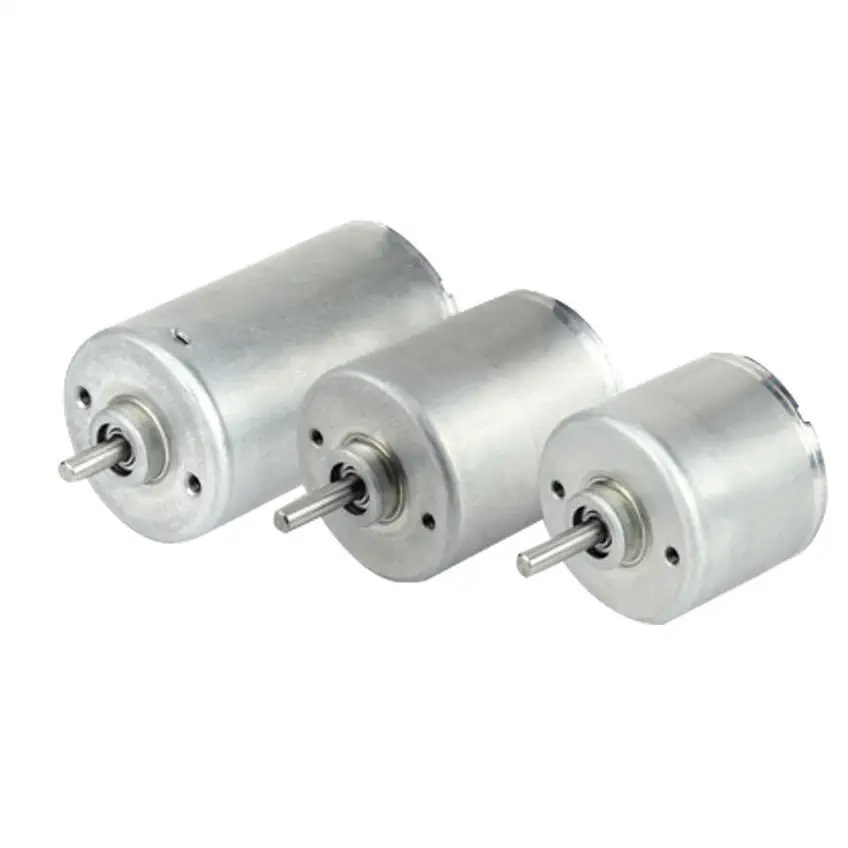

36mm Economical BLDC Motor
For Application Advice
Please Call
Please Call
- 01684 566163
- Economical BLDC Motor
- Body Length: 40 ~ 65mm
- Power: 18 ~ 45W
- Voltage: 24VDC
- Rated Torque: 0.035 ~ 0.09Nm
- Feature summary：
- Wide range of speed control and smooth torque output
- Excellent speed stability
- Small size, high power
- Low temperature rise, low noise, low vibration
ACCESSORIES：
| P/N | Frame Size | Rated Power (W) | Body Length (mm) | Rated Voltage (V) | Rated Torque (Nm) | Rated Current (A) | Rated Speed (rpm) |
| FL36CBL65-24V-4845A | 36 | 45 | 65 | 24 | 0.09 | 2.5 | 4800 |
| FL36CBL60-24V-4840A | 36 | 40 | 60 | 24 | 0.08 | 2.3 | 4800 |
| FL36CBL57-24V-4533A | 36 | 33 | 57 | 24 | 0.07 | 1.8 | 4500 |
| FL36CBL50-24V-4828A | 36 | 28 | 50 | 24 | 0.055 | 1.5 | 4800 |
| FL36CBL40-24V-4818A-01 | 36 | 18 | 40 | 24 | 0.035 | 1 | 4800 |
Full specification available on request
