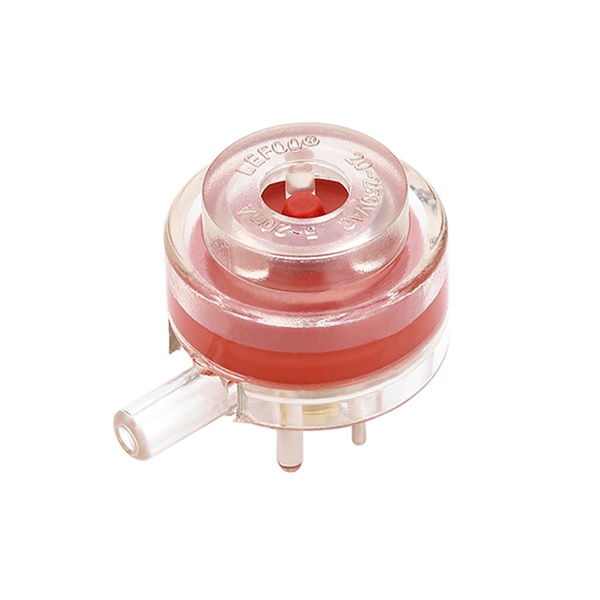

LFS-01 Vacuum Pressure Switch
For Application Advice
Please Call
Please Call
- 01684 566163
LFS-01 vacuum pressure switch is applied to the detection of both negative and positive pressure and may be applied to products such as vacuum cleaners.

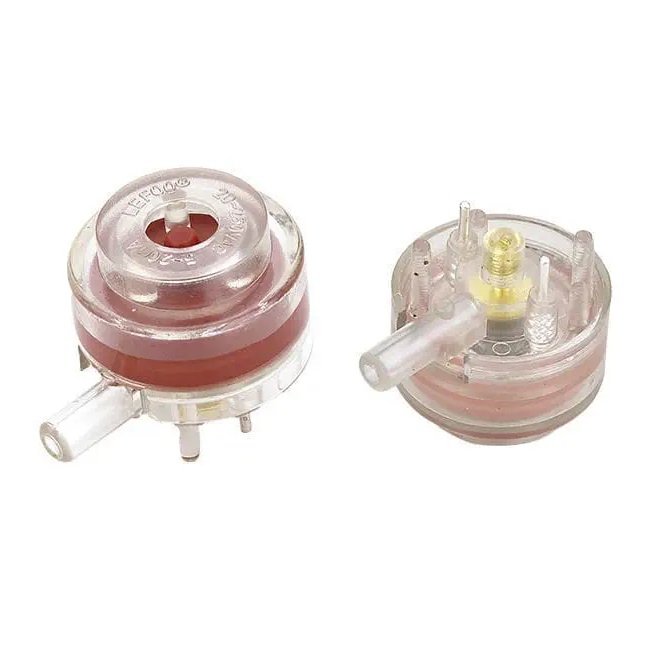

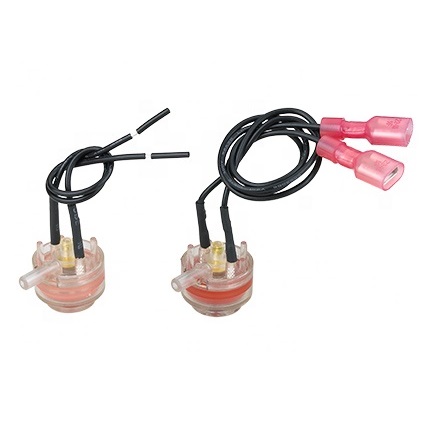

It is provided with solder pin connections and is specially designed for mounting on “Printed Circuit Boards”, but can also be provided with flying lead wires, terminals, and sockets.
It is designed as an economical interface between pressure systems and Printed Circuit Boards with almost no hysteresis.
| Electrical Function | 1 pole NO | ||
| Switch Rating | 20 mA, 250 VAC (cULus) | ||
| Temperature | -10 ~ 95°C | ||
| Electrical Connections | Solder pins 1.0 mm, 10mm centers; or wire leads with different insulation, diameter, and length, socket | ||
| Pressure Range | Vacuum: 10mbar to 800mbar Pressure: 10mbar to 500mbar (1mbar=100Pa) | ||
| Sample Line Connections | Inlet 4.0 mm for tube connection | ||
| Medium | Non-hazardous gas only | ||
| Fixing Methods | Soldering on PCB | ||
| Agency Approval | UL, CUL | ||
| Material | Housing | Polycarbonate | |
| Contact Carrying Parts | Brass Silver Plated (Gold plating on request) | ||
| Membrane | Silicone Rubber | ||
