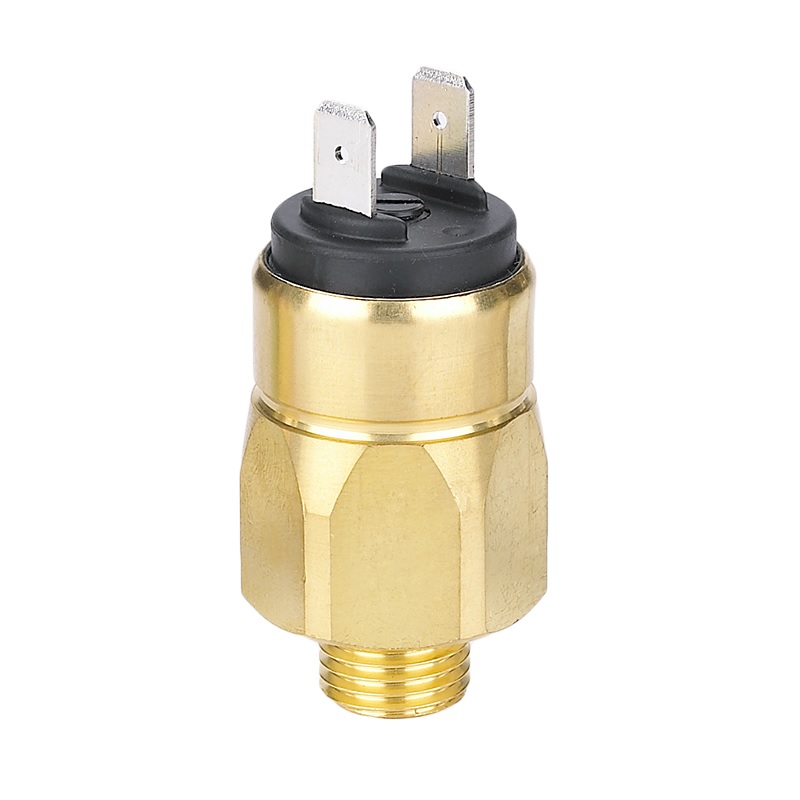

LF708 High Pressure switch
0.1~50bar
For Application Advice
Please Call
Please Call
- 01684 566163
In the industrial and automotive fields, a certain pressure value is usually set for the equipment. When the pressure reaches this value, the system will send an electronic signal to start the mechanical equipment which triggers a warning (such as a leak of equipment, an alarm, etc. ).
The LF708 is a Diaphragm type pressure switch. The max pressure can not exceed 300 bar.
| Body Material | Zinc-plated steel/Stainless steel | |
| Contact | Silver cadmium alloy, gold plated is available | |
| Max Voltage | 42V ~ MAX 100VAC | |
| Max Current | 4A | |
| Working Temperature Range | -40°C ~ +100°C (Different Diaphragm) | |
| Mechanic Life Endurance | 1,000,000 cycles | |
| Electric Life Endurance | 100,000 cycles | |
| Pollution Situation | Normal | |
| Protection level | IP00 (Terminal 1-2), IP67 (Terminal 3-8), IP65 (Terminal 9) | |
| Upper cover | IP54 (Termial 1-2) | |
| Side cover | IP55 (Termial 1-2) | |
| Applicable Rule | EN 60730-1 | |
| Max Working Pressure | Zinc-plated steel/Stainless steel: 160bar Brass: 40bar | |
| Burst Pressure | Zinc-plated steel/Stainless steel: 300bar Brass: 80bar | |
| Weight | ~85g | |
