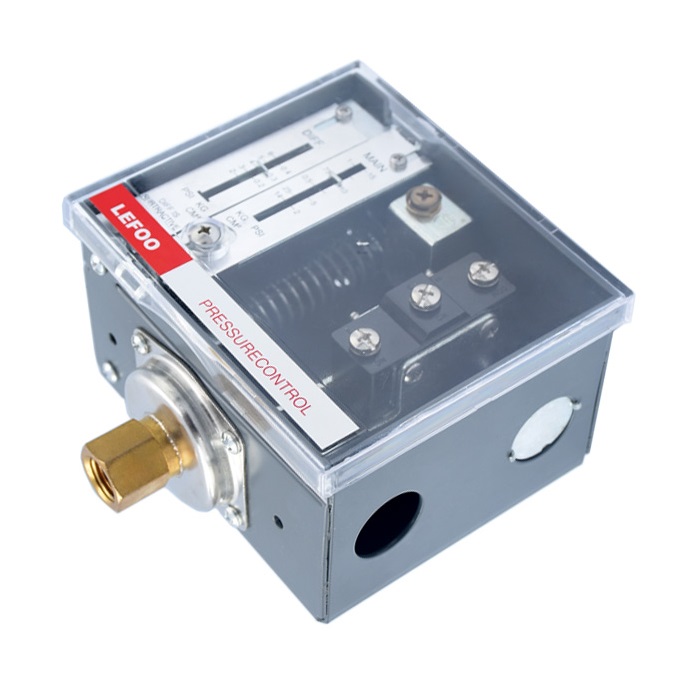

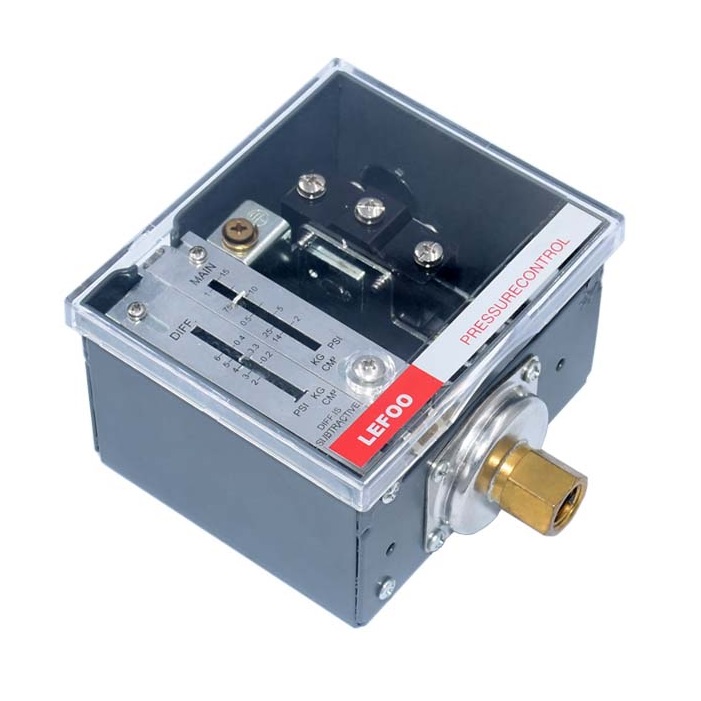

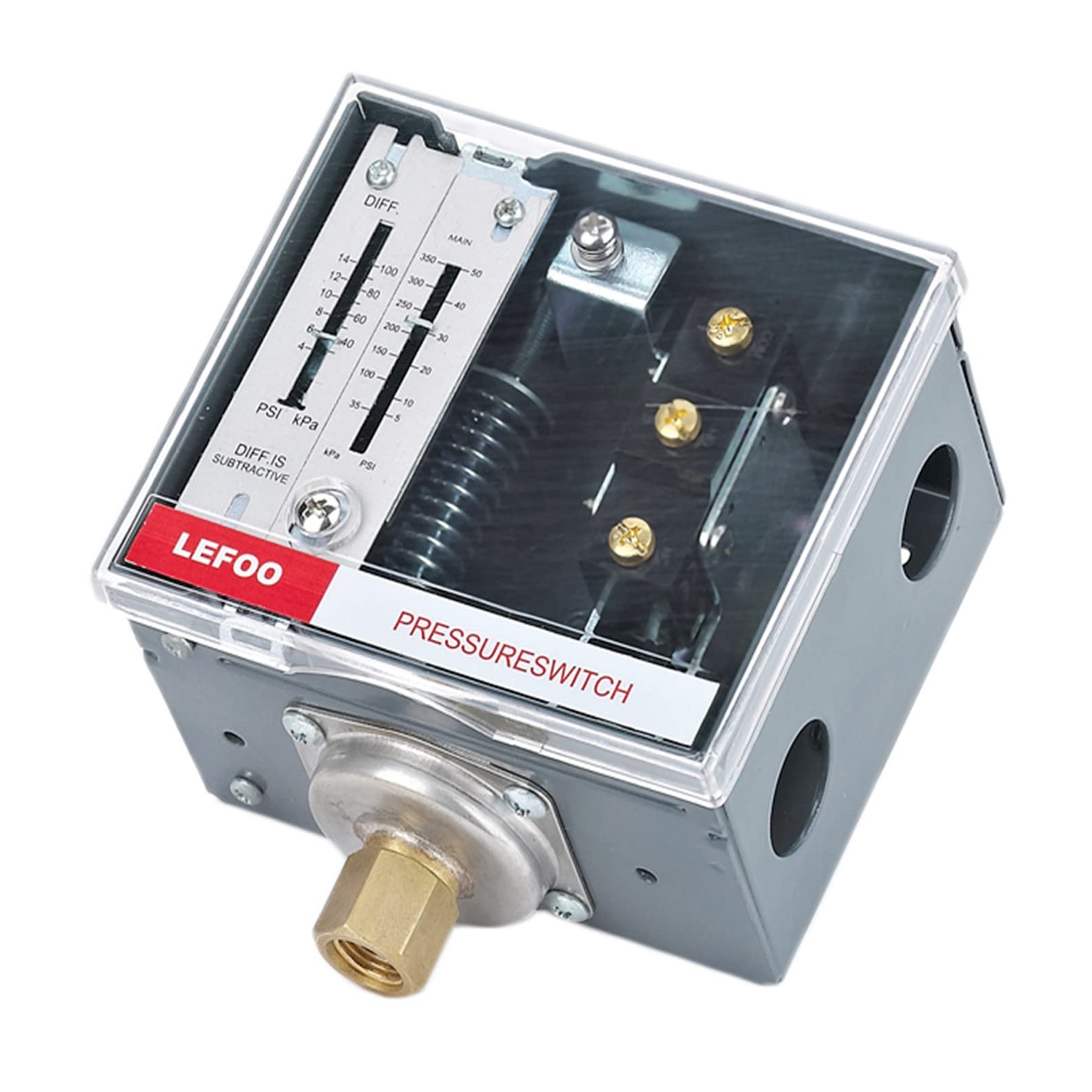

LF56 Steam Boiler Pressure Switch
15~2070kPa
For Application Advice
Please Call
Please Call
- 01684 566163
LF56 series pressure switches are mainly used to control the pressure of steam boilers or water towers regulating the system. When the system pressure exceeds the set point, the switch will cut off the circuit for protection.
With SPDT contact arrangement, the LF56 switch can detect the pressure change and shift the internal status accordingly to control the on/off of external circuits, which is available for the pressure control, limit, and alarm of non-hazardous liquid, gas, and steam.
| Model Number | Operating Ranges | Subtractive Differential | Maximum Diaphragm Pressure | |||
| kPa | psi | kPa | psi | kPa | psi | |
| LF5615 | 15-100 | 2-15 | 15-40 | 2-6 | 170 | 25 |
| LF5650 | 35-350 | 5-50 | 40-100 | 6-14 | 590 | 85 |
| LF56150 | 70-1035 | 10-150 | 70-150 | 10-22 | 1550 | 225 |
| LF56300 | 140-2070 | 20-300 | 140-345 | 20-50 | 2410 | 350 |
| Electrical specification | ||||||
| Voltage (AC) | FL (A) | LR (A) | ||||
| 240 | 5.1 | 30.6 | ||||
| 120 | 8.0 | 48.0 | ||||
| Contact resistance: smaller than 25mΩ | ||||||
| Electrical endurance: 50000 cycles | ||||||
| Mechanical specification | ||||||
| Contact arrangement | SPDT | |||||
| Working media | Standard model for oil, water, air, steam, liquid, and other non-corrosive media. Chlorine-containing liquids are not available. |
|||||
| Ambient temperature | -29°C ~ 66°C | |||||
| Media Temp | -40°C ~ 180°C non-frozen condition | |||||
| Pressure Diaphragm | Stainless steel | |||||
| Thermal material | Brass | |||||
| Connection | NPT1/4, G1/4, R1/4 | |||||

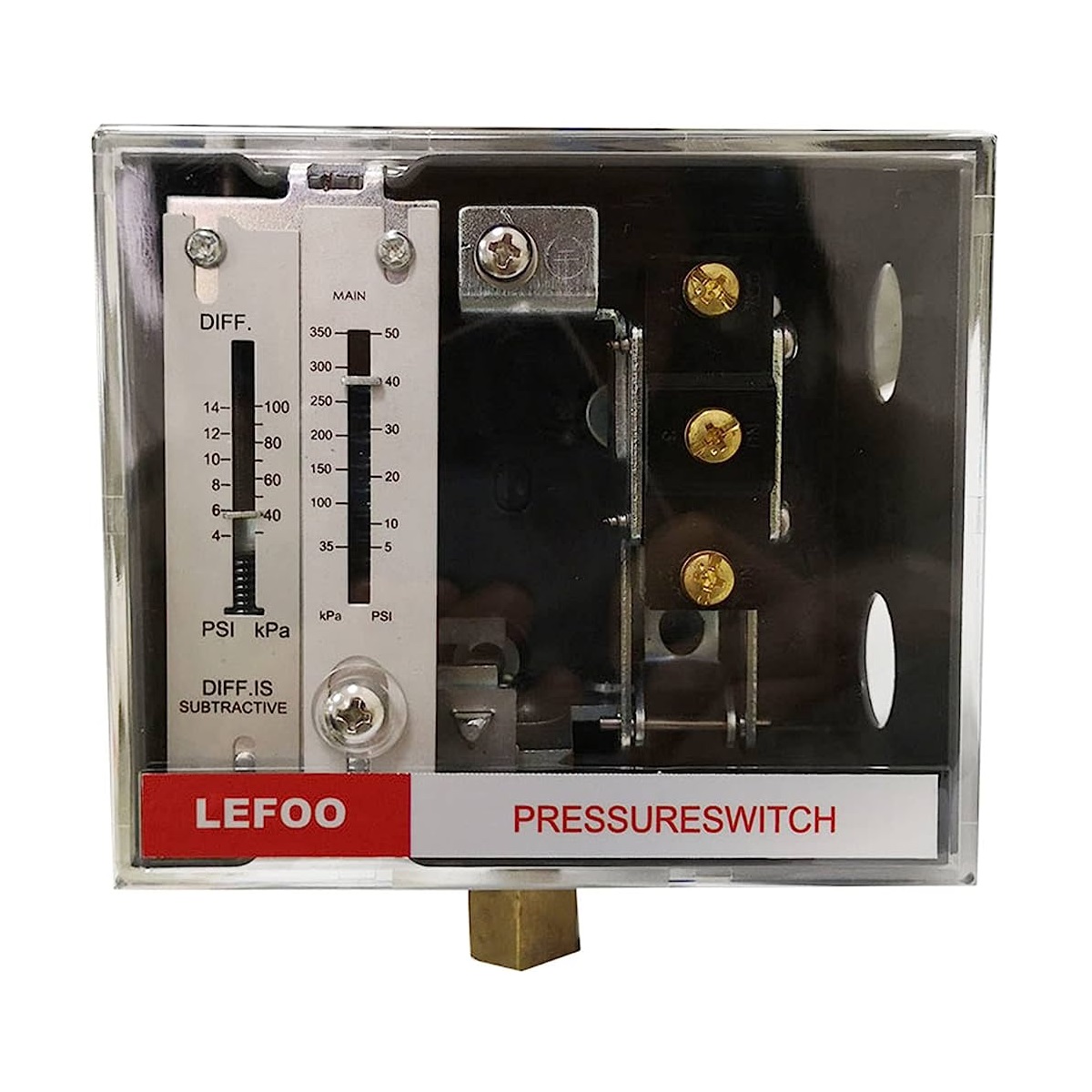

| The housing has a clear plastic cover that allows you to view the pressure control point | ||||||
| Mechanical endurance: 100,000 cycles | ||||||
| Material: Outlet hole, Connection thread, Cover screw, Pressure adjusting screw, Differential adjusting screw | ||||||
