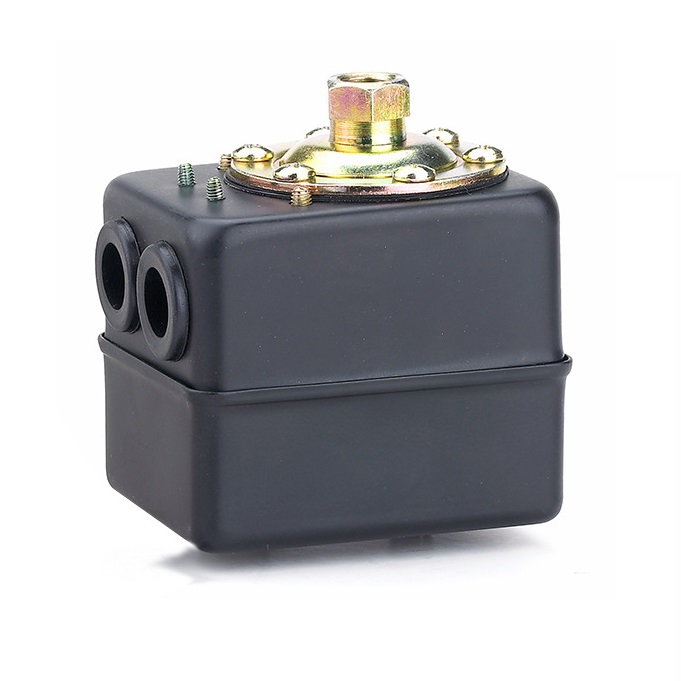

LF17 – High-Pressure Switch
15~500PSI
For Application Advice
Please Call
Please Call
- 01684 566163
The rugged LF17 pressure switch is designed for the demanding requirements of larger, heavy-duty commercial air compressors (up to 250 psi).
The sturdy painted steel case and cover resists the harsh conditions encountered in industrial applications.
This style is also available with an unloader valve to prevent the compressor from starting under load.
- Sturdy Stamped Steel Case & Cover
- Visible Contact
- No Drift Pressure Setting
- Captive Cover nut
- Ample Wiring Room
- 2 Ground Screw
- Easy to Adjust
- Automatic Unloader Valve Available
- Pulsation Dampener Standard
- 5HP Heavy Duty Rating
- 250 PSI Max
| MODEL | Min ON (Cut-In) PSI | Max Off (Cut-Out) PSI |
Differential PSI | Factory Setting PSI | Electrical Rating | Pipe Fittings | Contact Arrangement | |
| 120VAC | 240VAC | |||||||
| LF17 | 40 | 250 | 25-60 | 145-175 | 24A | 12A | 1/4″, 3/8″ Male or Female NPT | NC |
| LF17-S | 15 | 60 | 15-Jul | 30-40 | 24A | 12A | 1/4″, 3/8″ Male or Female NPT | NC |
| Approvals | UL, CSA | |||||||
| Conversion: 1Kgf/cm2 = 14.2PSI , 1Bar = 14.5PSI | ||||||||
