- Visible Contact
- No Drift Pressure Setting
- Captive Cover nut
- Ample Wiring Room
- 2 Ground Screw
- Easy to Adjust
- Pulsation Dampener Standard
- 5HP Heavy Duty Rating
- 250 PSI Max
LF17-W
LF17-W

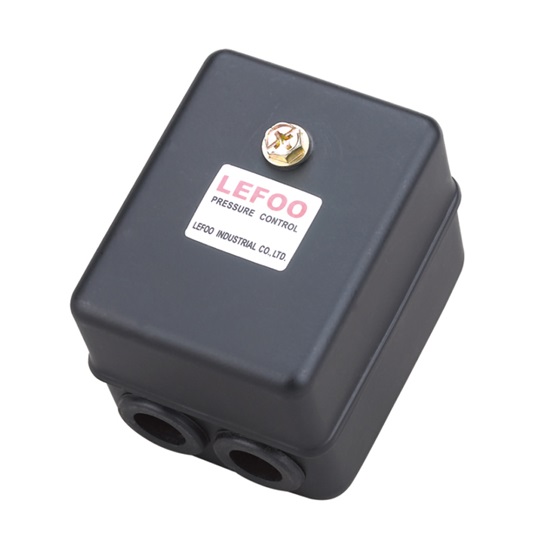

LF17-W – Water Pressure Switch
14~250PSI
For Application Advice
Please Call
Please Call
- 01684 566163
The rugged LF17-W pressure switch is designed for the demanding requirements of large, heavy-duty commercial water pump systems.
| MODEL | Min ON (Cut-In) PSI | Max Off (Cut-Out) PSI |
Differential PSI | Factory Setting PSI | Electrical Rating | Pipe Fittings | Contact Arrangement | |
| 1 Phase (2 Pole) |
3 Phase (2 Pole) |
|||||||
| LF17-W | 40 | 250 | 25-60 | 145-175 | 2HP@120V 3HP@240V | 5HP@240V 5HP@460V | 1/4″, 3/8″ Male or Female NPT, G | NC |
| LF17-WS | 15 | 60 | 7-15 | 30-40 | 2HP@120V 3HP@240V | 5HP@240V 5HP@460V | 1/4″, 3/8″ Male or Female NPT, G | NC |
