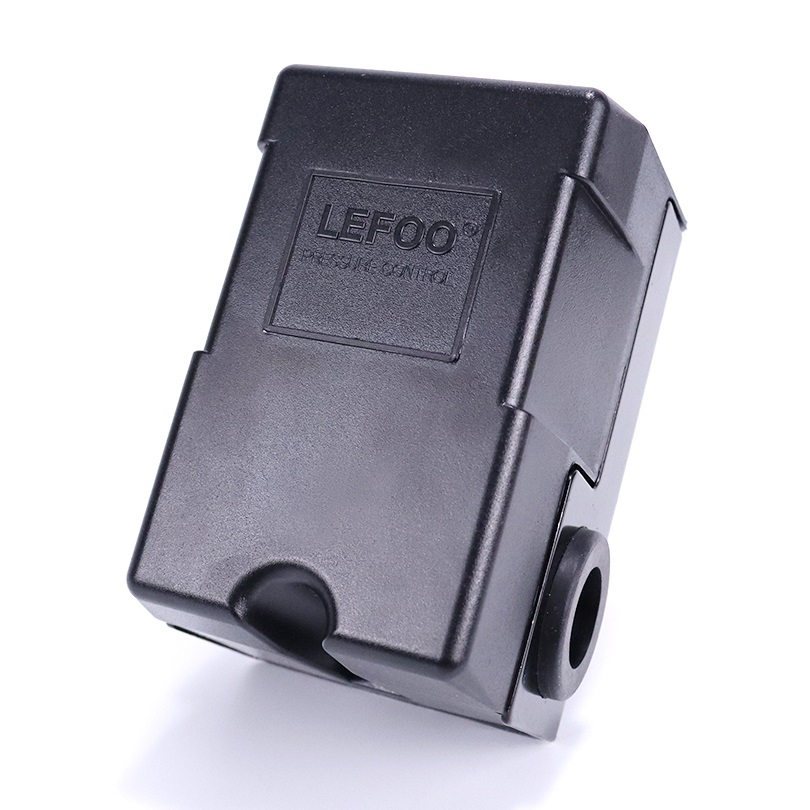

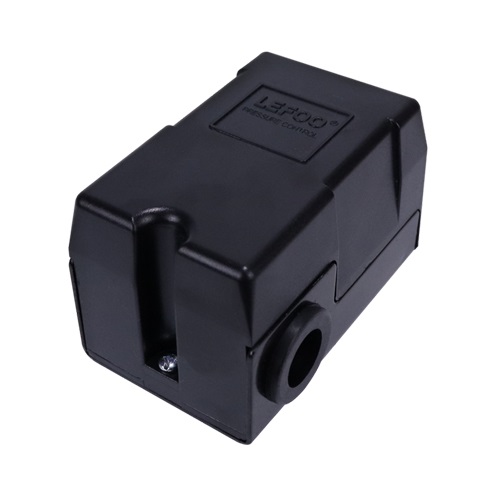

LF10-W – Water Pressure Switch
15~150PSI
For Application Advice
Please Call
Please Call
- 01684 566163
LF10-W series pressure switches provide time-tested, reliable control for automatic water systems. The switch is universally acceptable for use as original equipment on water well pumps or pumping systems.
LF10-WR can prevent the pump from starting whenever the system falls considerably below the cut-in pressure. Upon the restoration of the water supply, it will automatically cut in.
A manual reset lever is depressed until a build-up of system pressure permits automatic operation. Its simple design makes it easy to use for professionals and non-professionals alike.
- Corrosion Resistant and Non-Metallic Cover
- No Wire Looping

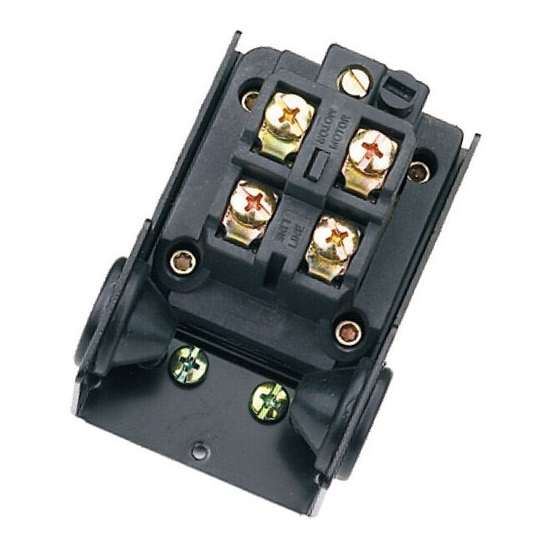

- Straight Thru Wiring
- Visible Contacts 2 Pole Double Break
- No Drift Pressure Settings
- Captive Cover Screw
- Ample Wiring Room
- Ground Screws
- Easy to Adjust
- Stainless Steel Connection is optional
- Other Connection fittings are optional
| MODEL | Min ON (Cut-In) PSI | Max OFF (Cut-Out) PSI |
Differential PSI |
Factory Setting PSI | Electrical Rating | Pipe Fittings | Contact Arrangement | |
| 120VAC | 240VAC | |||||||
| LF10-WS1 | 15 | 80 | 15-30 | 20-35 | 20A | 12A | 1/4″ Male or Female NPT | NC |
| LF10-WS2 | 30 | 100 | 20-35 | 30-50 | 20A | 12A | 1/4″ Male or Female NPT | NC |
| LF10-WS3 | 35 | 150 | 30-40 | 85-115 | 20A | 12A | 1/4″ Male or Female NPT | NC |
| Conversion: 1Kgf/cm2 = 14.2PSI , 1bar = 14.5PSI | ||||||||
| MODEL | Max ON (Cut-in) PSI | Min OFF (Cut-out) PSI | Differential PSI |
Factory Setting PSI | Electrical Rating | Pipe Fittings | Contact Arrangement | |
| 120VAC | 240VAC | |||||||
| LF10-WR1 | 80 | 15 | 15-30 | 35-20 | 20A | 12A | 1/4″ Male or Female NPT | NO |
| LF10-WR2 | 100 | 30 | 25-35 | 50-30 | 20A | 12A | 1/4″ Male or Female NPT | NO |
| LF10-WR3 | 150 | 35 | 30-40 | 115-85 | 20A | 12A | 1/4″ Male or Female NPT | NO |
| Approvals | UL, CUL, CSA, TUV CE | |||||||
| Other pipe fittings are available on request. Stainless Steel Connection is optional. | ||||||||
