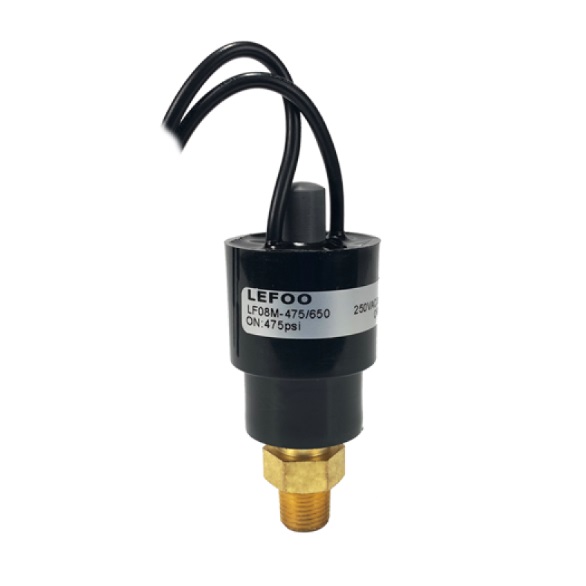

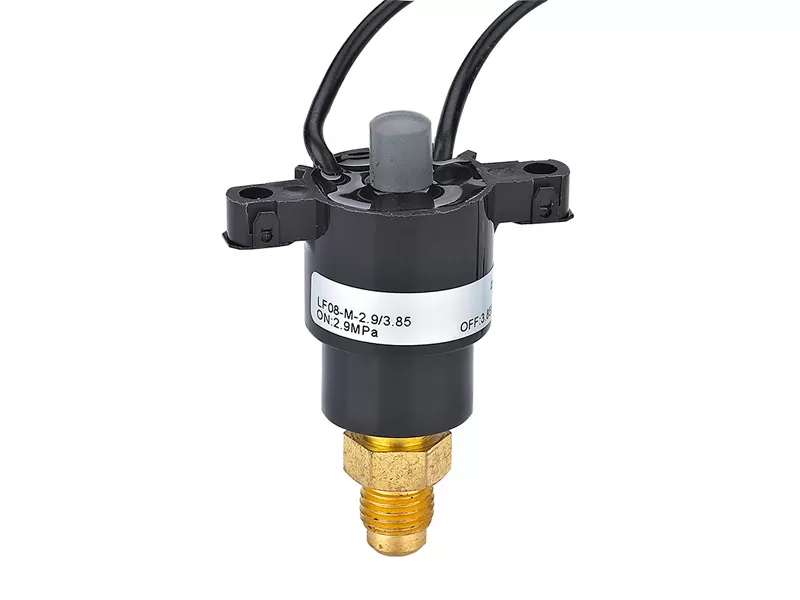

LF08M – Manual Reset Pressure Switch
0.2~45bar
For Application Advice
Please Call
Please Call
- 01684 566163
The LF08M switches are fixed set point, factory-calibrated pressure switches.
It is a manual reset product and can have either normally open or normally closed contacts. All metallic components make the LF08M switch compatible with a multitude of chemicals in liquid or gas form.
| Medium | Air, Water, motor oils, transmission oils, refrigeration fluid |
| Pressure Set Point Range | OFF: 10Bar~47Bar, ON: 4~42Bar |
| Proof Pressure | 3.5 – 5.5MPa |
| Burst Pressure | 200Bar |
| Operating Temperature Range | -40°C~120°C |
| Switch Type | Direct action, NO, or NC |
| Electrical Rating | 120V/240V/380V/375V |
| Terminals | Lead wires |
| Connection | 7/16-20UNF |
| Options | Various connector thread sizes; wire leads (potted & sealed) |
