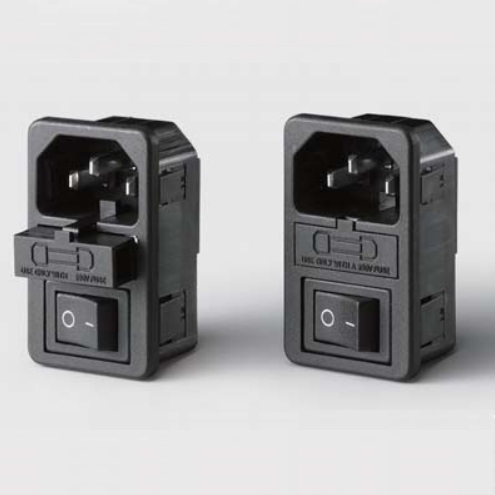

IEC Switched & Fused Power Entry Module EN60320 C14

Power Inlet

• Compatible with C13 Plug
• Power Rating: 10A, 250V AC
• Electric Strength: AC 2,000V AC for 1 Minute
• Contact Resistance: 30MΩ Max.
• Insulation Resistance: 100MΩ Min. at 500V DC
• Operating Temperature: +90℃
• Materials: Thermoplastic UL Flammability, 94V-0 & Copper Alloy

Rocker Switch

• Power Rating: 10A, 250V AC
• Electric Strength: AC 1,500V AC for 1 Minute
• Contact Resistance: 20MΩ Max.
• Insulation Resistance: 100MΩ Min. at 500V DC
• Operating Temperature: +105℃
• Materials: Thermoplastic UL Flammability, 94V-2 & Copper Alloy
